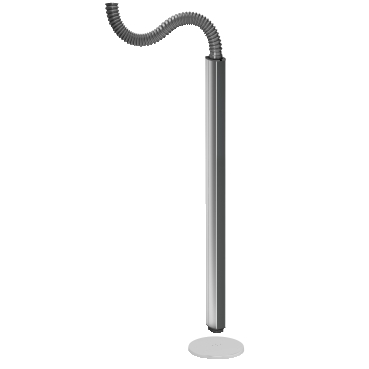

OptiLine 50, Pole, free-standing, two sided, empty, anodized, Australian
Item Number: INS43412
Datasheet
Close
Specifications
Design
Range
OptiLine
Range of product
OptiLine 50
Product or component type
pole
Colour tint
natural
Physical
Device presentation
empty
Quantity per set
set of 1
Marking
CE
Height
2150 mm
Width
116 mm
Standards
EN 50085-1:2005|IEC 1084-2-4|EN 60598-2-2|73/23/EEC|93/68/EEC
Ambient air temperature for operation
-15...60 °C
Ip degree of protection
IP30
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Device composition
front cover|floor fixing|stop end|earth terminal|earth clamp|mounting instruction|flexible conduit 2000 mm|strain relief|earth cable
Material
aluminium conforming to EN-AW-6063|PC/ABS conforming to UL 94 HB
Others
Package 1 bare product quantity
1
Product name
OptiLine 50
Type of pole
two-sided
Cms inst product add info
flexible conduit 2000 mm
Pole/post surface finish
anodized
Pole fixing mode
free-standing
Directives
2014/35/EU - low voltage directive
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11.6 cm
Package 1 width
9 cm
Package 1 length
215 cm
Package 1 weight
6.75 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-

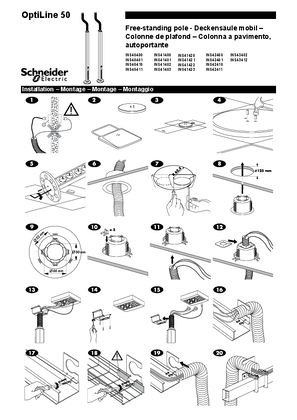

Operating Manuals
