Specifications
Design
Range of product

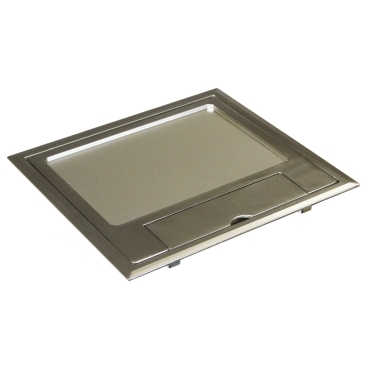

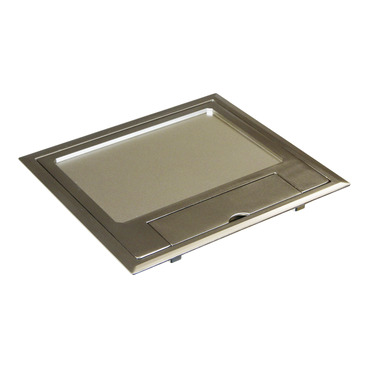

OptiLine 50
Product or component type
lid
Colour tint
stainless steel
Physical
Quantity per set
set of 1
Fixing mode
self-adhesive tape
Height
21 mm
Width
255 mm
Depth
278 mm
Ik degree of protection
IK07
Ip degree of protection
IP20
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Environmental disclosure
ENVPEP1412007EN
Circularity profile
N/A
Material
Material
die cast aluminium
Others
Package 1 bare product quantity
1
Cabling installation system
floor outlet box
Type of floor
hollow core floor|in-cavity floor|raised floor
Floor box shape
rectangular
Accessory / separate part destination
for 8 modules steel box
Number of modules
8 modules
Maximum load
10000 N
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.8 cm
Package 1 width
31.4 cm
Package 1 length
33.4 cm
Package 1 weight
1.5 kg
Unit type of package 2
CAR
Number of units in package 2
6
Package 2 height
330 mm
Package 2 width
393 mm
Package 2 length
393 mm
Package 2 weight
10 kg
