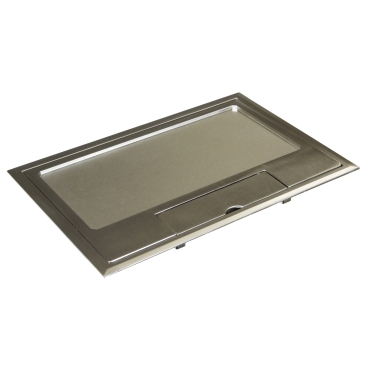

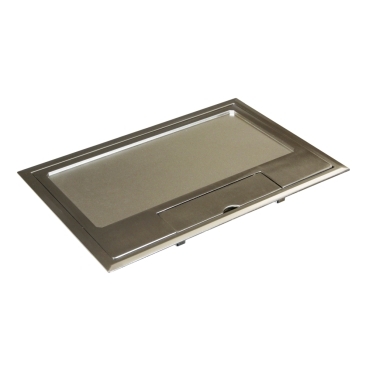

OptiLine 50, lid for 12 modules steel box, stainless steel

Home ProductsCable ManagementOptiLinelid for 12 modules steel box

OptiLine 50, lid for 12 modules steel box, stainless steel

Item Number: INS51210

Datasheet

Product Dimensions

Width icon

Width255 mm

Height icon

Height21 mm

Depth icon

Depth378 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 50

Product or component type

lid

Colour tint

stainless steel

Physical

Quantity per set

set of 1

Fixing mode

self-adhesive tape

Height

21 mm

Width

255 mm

Depth

378 mm

Ik degree of protection

IK07

Ip degree of protection

IP20

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Environmental disclosure

ENVPEP1412007EN

Circularity profile

N/A

Material

Material

die cast aluminium

Others

Package 1 bare product quantity

1

Cabling installation system

floor outlet box

Type of floor

raised floor|in-cavity floor|hollow core floor

Floor box shape

rectangular

Accessory / separate part destination

for 12 modules steel box

Number of modules

12 modules

Maximum load

10000 N

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.8 cm

Package 1 width

31.4 cm

Package 1 length

41.4 cm

Package 1 weight

1.8 kg
Show all specifications
