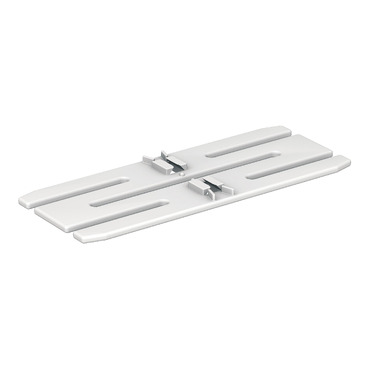

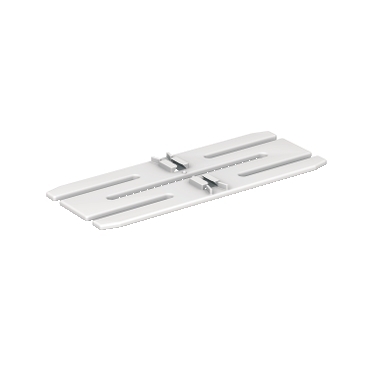

OptiLine 70 internal jointing piece PC/ABS, white

Qty	UoM	EAN	Colour
1	PCE	3606480029288	-

Specifications

Design

Market segment	small commercial residential
Range of product	OptiLine 70
Product or component type	internal jointing piece
Colour tint	white (RAL 9010)

Physical

Quantity per set	set of 10
Length	100 mm
Height	4 mm
Width	39 mm
Standards	73/23/EEC 93/68/EEC EN 50085-1:2005 EN 50085-1:2013/A1 EN 50085-2-1:2006 NF C 68-102 EN 50085-2-1:2011/A1
Ambient air temperature for operation	-25...60 °C
Ip degree of protection	IP40
Ik degree of protection	IK07
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP060309EN
Eu rohs directive	Compliant

Material

Material	PC/ABS

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Weee label	No
Cabling installation system	trunking
Trunking material	aluminium plastic
Trunking dimension	185 x 55 mm 80 x 55 mm 155 x 55 mm 120 x 55 mm 95 x 55 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.9 cm
Package 1 width	10.0 cm
Package 1 length	0.3 cm
Package 1 weight	9.0 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	2.0 cm
Package 2 width	17.0 cm
Package 2 length	17.0 cm
Package 2 weight	90.0 g
Unit type of package 3	S03
Number of units in package 3	600
Package 3 height	30.0 cm
Package 3 width	30.0 cm
Package 3 length	40.0 cm
Package 3 weight	5.887 kg
Sustainable packaging	Yes
End of life manual availability	N/A
Warranty (in months)	18
