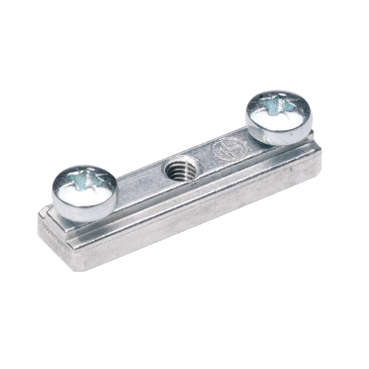

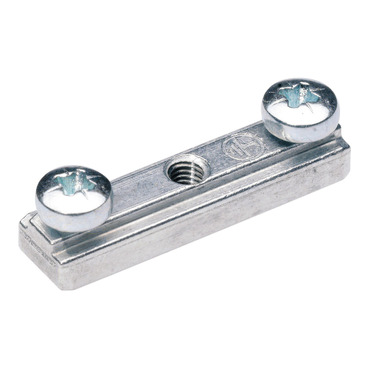

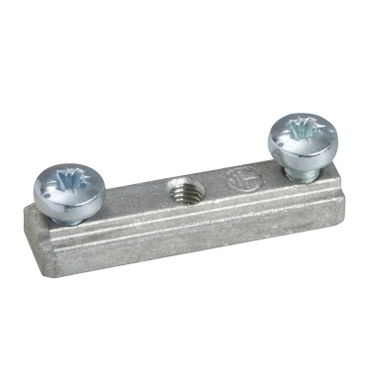

OptiLine 45, internal jointing and earthing piece, zinc

Home ProductsCable ManagementOptiLineinternal jointing and earthing piece

OptiLine 45, internal jointing and earthing piece, zinc

Item Number: ISM10955

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Market segment

<ul><li>small commercial</li><li>residential</li></ul>

Range of product

<ul><li>OptiLine 70</li><li>OptiLine 45</li></ul>

Product or component type

internal jointing and earthing piece

Warranty

18 months

Physical

Quantity per set

set of 10

Length

26 mm

Height

4 mm

Width

6 mm

Standards

<ul><li>73/23/EEC</li><li>93/68/EEC</li><li>EN 50085-1:2005</li><li>EN 50085-1:2013/A1</li><li>EN 50085-2-1:2006</li><li>NF C 68-102</li><li>EN 50085-2-1:2011/A1</li></ul>

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP30

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Material

Material

zinc untreated

Others

Package 1 bare product quantity

1

Cabling installation system

trunking

Trunking material

<ul><li>plastic</li><li>aluminium</li></ul>

Trunking dimension

<ul><li>140 x 55 mm</li><li>185 x 55 mm</li><li>80 x 55 mm</li><li>95 x 55 mm</li><li>155 x 55 mm</li><li>120 x 55 mm</li><li>165 x 55 mm</li><li>75 x 55 mm</li></ul>

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.7 cm

Package 1 width

0.6 cm

Package 1 length

2.5 cm

Package 1 weight

5.0 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

0.7 cm

Package 2 width

7.5 cm

Package 2 length

11.5 cm

Package 2 weight

51.0 g

Unit type of package 3

S02

Number of units in package 3

600

Package 3 height

15.0 cm

Package 3 width

30.0 cm

Package 3 length

40.0 cm

Package 3 weight

3.515 kg
