Specifications
Design
| Range of product | OptiLine 70 |
|---|---|

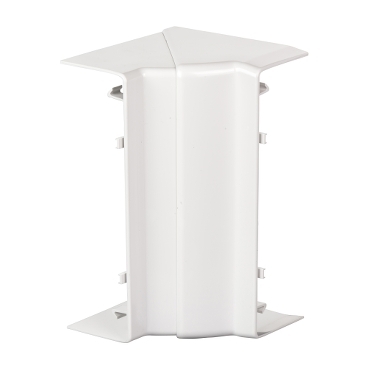

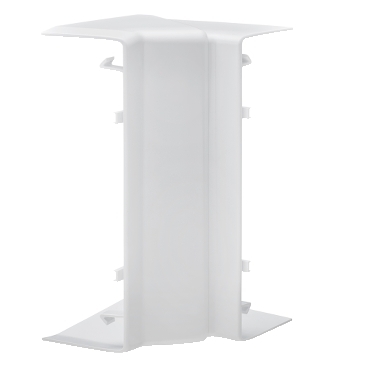

| Product or component type | internal corner |
| Colour tint | polar white (RAL 9003) |
Physical
| Quantity per set | set of 1 |
|---|---|
| Fixing mode | snap-fitted |
| Length | 117 mm |
| Height | 194 mm |
| Width | 117 mm |
| Standards |
|
| Ambient air temperature for operation | -25...60 °C |
| Ip degree of protection | IP40 |
| Ik degree of protection | IK07 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP060310EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | PC/ABS |
|---|
