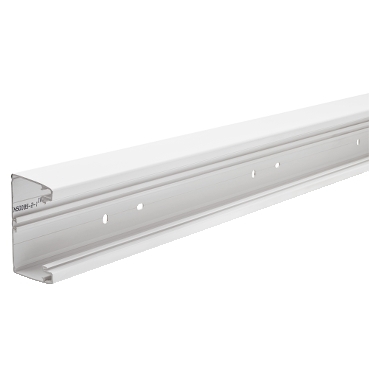

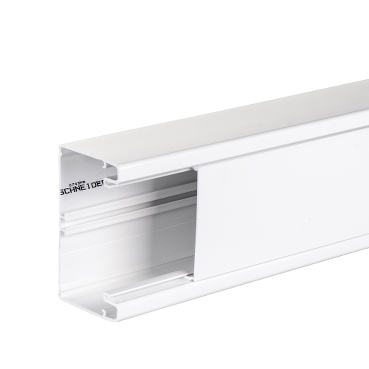

OptiLine 70 installation trunking 95x55mm, PVC, polar white, 2000mm
Item Number: ISM11200P
Datasheet
Close
Specifications
Design
| Range of product | OptiLine 70 |
|---|---|
| Product or component type | installation trunking |
| Colour tint | polar white (RAL 9003) |
Physical
| Quantity per set | 12 m |
|---|---|
| Fixing mode | by screws |
| Length | 2000 mm |
| Height | 95 mm |
| Width | 55 mm |
| Standards |
|
| Ambient air temperature for operation | -25...60 °C |
| Ip degree of protection | IP40 |
| Ik degree of protection | IK07 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP060310EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | PVC (polyvinyl chloride) |
|---|
Documents & downloads
Filter items
-
All
-

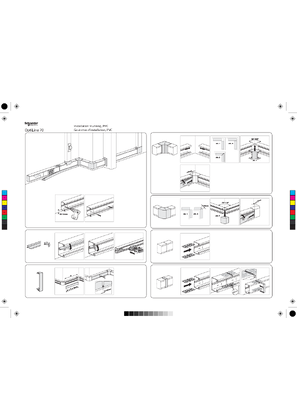

Installation Instruction
-
Declaration of Conformity (Sustainability)
ZIP
ISM11200P EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
ISM11200P EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
ISM11200P EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
ISM11200P EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
ISM11200P REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
ISM11200P REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
