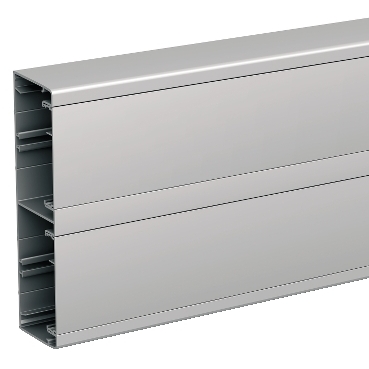

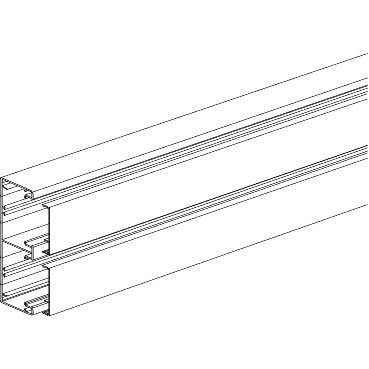

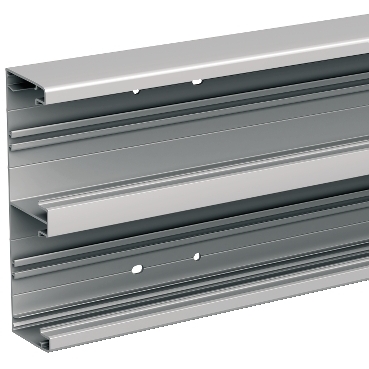

OptiLine 70 installation trunking 185x55mm, aluminium, natural, 2000mm

OptiLine 70 installation trunking 185x55mm, aluminium, natural, 2000mm

Item Number: ISM11550

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product OptiLine 70
Product or component type installation trunking
Colour tint natural
Market segment
  • residential
  • small commercial

Physical

Quantity per set 4 m
Fixing mode by screws
Length 2000 mm
Height 185 mm
Width 55 mm
Standards
  • 73/23/EEC
  • 93/68/EEC
  • EN 50085-1:2005
  • EN 50085-2-1:2002
Ambient air temperature for operation -25...60 °C
Ip degree of protection IP40
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP060309EN
Eu rohs directive Compliant

Material

Material aluminium anodized

Others

Legacy weee scope Out
Package 1 bare product quantity 1
At least in Europe
Weee label No
Cabling installation system trunking
Trunking material aluminium
Trunking dimension 185 x 55 mm

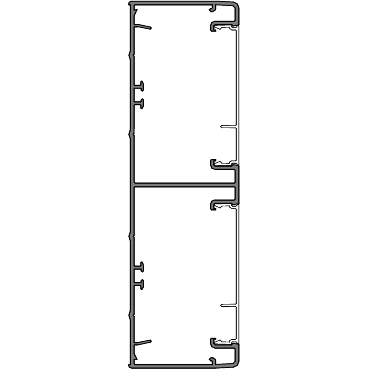

Compartment partitioning 2 compartments
Mounting location Internal
Front opening size 70 mm
Unit type of package 1 PCE
Number of units in package 1 2
Package 1 height 195 cm
Package 1 width 225 cm
Package 1 length 2000 cm
Package 1 weight 12 kg
Unit type of package 2 CAR
Number of units in package 2 4
Package 2 height 19.5 cm
Package 2 width 22.5 cm
Package 2 length 206 cm
Package 2 weight 24 kg
Unit type of package 3 P12
Number of units in package 3 60
Package 3 height 72.5 cm
Package 3 width 120 cm
Package 3 length 205 cm
Package 3 weight 375.76 kg
Sustainable packaging No
End of life manual availability N/A
Warranty (in months) 18
