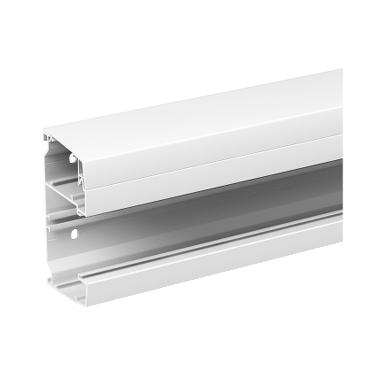

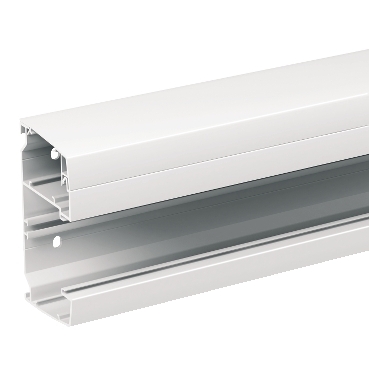

OptiLine 50 installation trunking 120 x 63mm, plastic, white, 2.5m

Home ProductsCable ManagementOptiLineinstallation trunking

OptiLine 50 installation trunking 120 x 63mm, plastic, white, 2.5m

Item Number: INS12300

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 50

Product or component type

installation trunking

Colour tint

white (RAL 9010)

Warranty

18 months

Physical

Quantity per set

10 m

Fixing mode

  • by brackets
  • screw-fixed

Length

2500 mm

Height

120 mm

Width

63 mm

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP40

Ik degree of protection

IK07

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP090920EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC/ABS

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

At least in Europe

Weee label

No

Compartment partitioning

2 compartments

Trunking dimension

120 x 63 mm

Trunking material

plastic

Front opening size

50 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12 cm

Package 1 width

6.3 cm

Package 1 length

100 cm

Package 1 weight

1 kg

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
