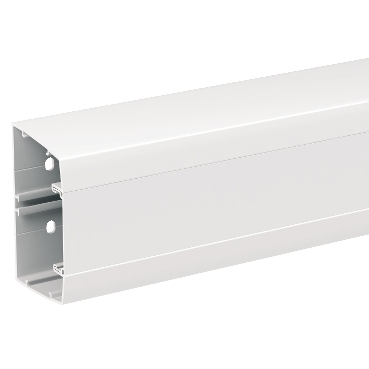

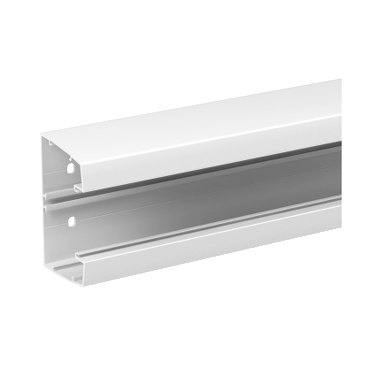

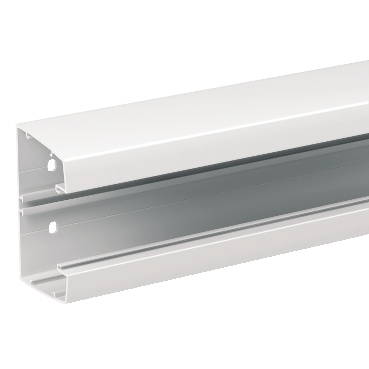

OptiLine 50 installation trunking 100 x 63mm, plastic, white, 2.5m
Item Number: INS12200
Datasheet
Close
Specifications
Design
| Range of product | OptiLine 50 |
|---|---|
| Product or component type | installation trunking |
| Colour tint | white (RAL 9010) |
| Warranty | 18 months |
Physical
| Quantity per set | 10 m |
|---|---|
| Fixing mode | screw-fixed |
| Length | 2500 mm |
| Height | 100 mm |
| Width | 63 mm |
| Ambient air temperature for operation | -25...60 °C |
| Ip degree of protection | IP40 |
| Ik degree of protection | IK07 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP0909020EN |
| Eu rohs directive | Compliant |
Material
| Material | PC/ABS |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-

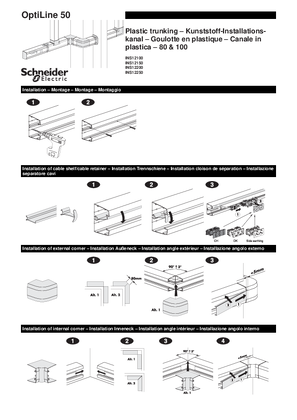

Operating Manuals
-
