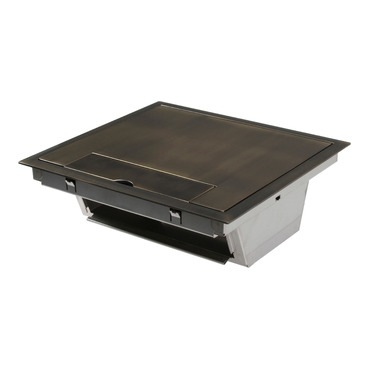

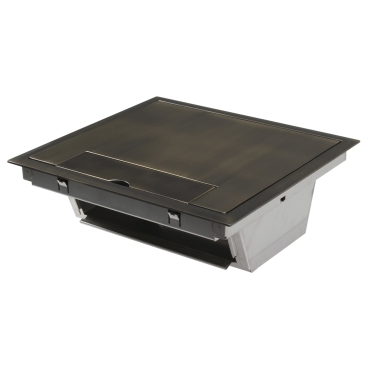

OptiLine 50, Flush Lid, 8 Module Carcass with Aluminium Alloy and GM Finish

OptiLine 50, Flush Lid, 8 Module Carcass with Aluminium Alloy and GM Finish

Item Number: INS62031

Datasheet

Product Dimensions

Width icon

Width255 mm

Height icon

Height91 mm

Depth icon

Depth278 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

OptiLine

Range of product

OptiLine 50

Product or component type

floor outlet box

Colour tint

gun metal

Physical

Device presentation

complete product

Device mounting

floor mounted

Height

91 mm

Width

255 mm

Depth

278 mm

Ik degree of protection

IK07

Ip degree of protection

IP20

Eu rohs directive

Not applicable, out of EU RoHS legal scope

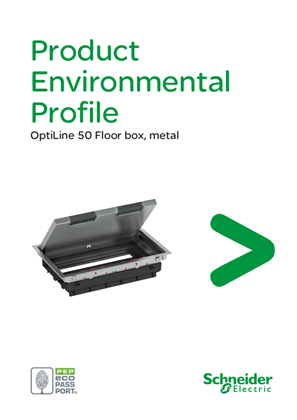

Environmental disclosure

ENVPEP090933EN

Circularity profile

N/A

Material

Material

stainless steel zinc coated|die cast aluminium

Others

Package 1 bare product quantity

1

Product name

OptiLine 50

Device short name

OL50

Cabling installation system

floor box

Type of floor

hollow core floor|in-cavity floor|raised floor

Floor box shape

rectangular

Number of modules

8 modules

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

21.5 cm

Package 1 width

32.8 cm

Package 1 length

36.3 cm

Package 1 weight

3.3 kg
Show all specifications
