Specifications
Design
Range
OptiLine
Range of product

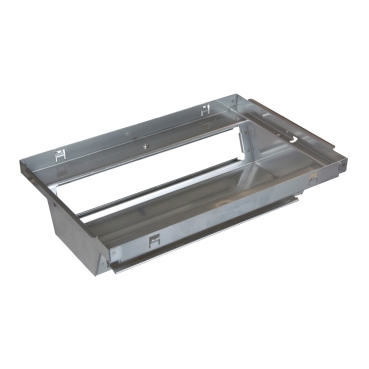

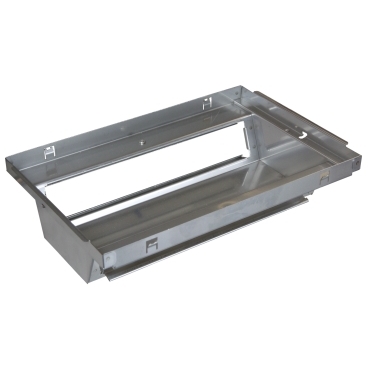

OptiLine 50
Product or component type
floor outlet box
Colour tint
stainless steel
Physical
Device presentation
complete product
Device mounting
floor mounted
Height
88 mm
Width
235 mm
Depth
370 mm
Ik degree of protection
IK07
Ip degree of protection
IP20
Environmental disclosure
ENVPEP1412006EN
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Material
Material
stainless steel zinc coated
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Product name
OptiLine 50
Device short name
OL50
Cabling installation system
floor box
Type of floor
- in-cavity floor
- raised floor
- hollow core floor
Floor box shape
rectangular
Number of modules
12 modules
Maximum load
10000 N
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
21.5 cm
Package 1 width
32.8 cm
Package 1 length
44.3 cm
Package 1 weight
2 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
