Specifications
Design
Range of product
OptiLine 50
Product or component type
external corner
Colour tint
white (RAL 9010)
Warranty
18 months
Physical
Quantity per set
1 piece
Length
153 mm
Height
149 mm
Width
153 mm
Ambient air temperature for operation
-25...60 °C
Ip degree of protection
IP40
Ik degree of protection
IK07
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP090918EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
PC/ABS
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
At least in Europe
Weee label
No
Trunking dimension
140 x 63 mm
Cms inst product add info
adjustable
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.5 cm
Package 1 width
17.8 cm
Package 1 length
22.1 cm
Package 1 weight
218 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-

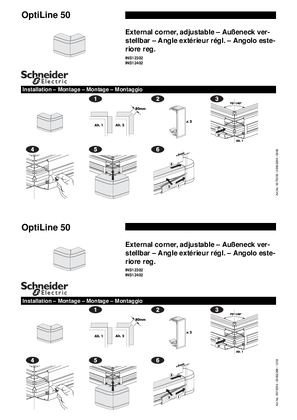

Installation Instruction
-
