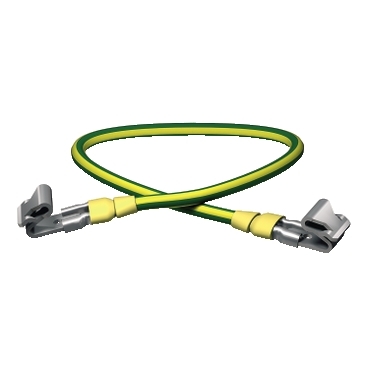

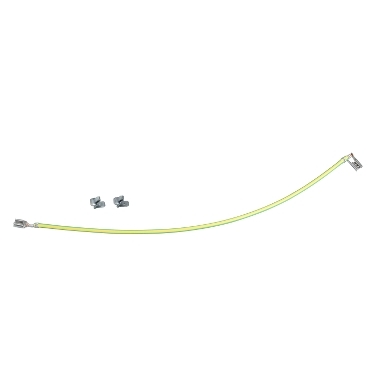

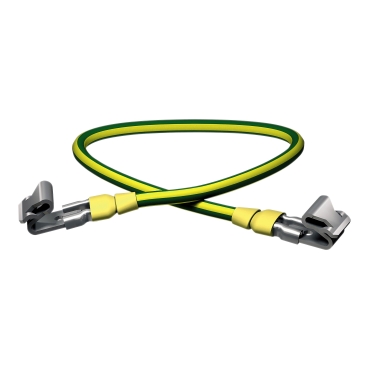

OptiLine 45 earthing device green yellow

Item Number: ISM10954

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • OptiLine 50
  • OptiLine 70
  • OptiLine 45

Product or component type

earthing device

Colour tint

  • green
  • yellow

Product compatibility

  • Altira wiring device
  • Unica wiring device

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Device presentation

empty

Quantity per set

set of 10

Length

300 mm

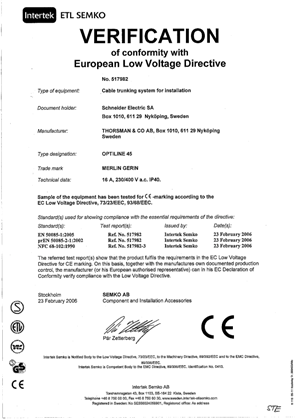

Standards

  • 73/23/EEC
  • 93/68/EEC
  • EN 50085-1:2005
  • EN 50085-1:2013/A1
  • EN 50085-2-1:2006
  • EN 50085-2-1:2011/A1
  • NF C 68-104

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP30

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Material

Material

aluminium

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

300

Package 3 bare product quantity

7200

Cabling installation system

  • service box
  • pole
  • post
  • trunking

Type of pole

  • two-sided
  • one-sided

Type of post

  • two-sided
  • one-sided

Type of service box

service box kit

Trunking material

aluminium

Trunking dimension

  • 155 x 55 mm
  • 95 x 55 mm
  • 185 x 55 mm
  • 80 x 55 mm
  • 165 x 55 mm
  • 75 x 55 mm
  • 120 x 55 mm
  • 140 x 55 mm

Pole/post surface finish

  • powder coated
  • anodized

Pole fixing mode

  • tension-mounted
  • free-standing

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.000 cm

Package 1 width

300.000 cm

Package 1 length

3.000 cm

Package 1 weight

4.000 g

Unit type of package 2

CAR

Number of units in package 2

300

Package 2 height

30.000 cm

Package 2 width

39.800 cm

Package 2 length

29.900 cm

Package 2 weight

5.080 kg

Unit type of package 3

P12

Number of units in package 3

7200

Package 3 height

80.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

136.920 kg
