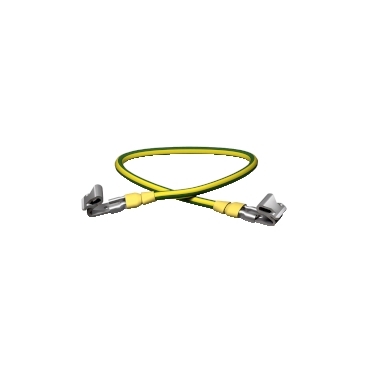

OptiLine 45 earthing device green yellow

OptiLine 45 earthing device green yellow

Item Number: ISM10953

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • OptiLine 50
  • OptiLine 45
  • OptiLine 70

Product or component type

earthing device

Colour tint

  • green
  • yellow

Product compatibility

  • Altira wiring device
  • Unica wiring device

Market segment

  • residential
  • small commercial

Warranty

18 months

Physical

Device presentation

empty

Quantity per set

set of 10

Length

200 mm

Standards

  • 73/23/EEC
  • 93/68/EEC
  • EN 50085-1:2005
  • EN 50085-1:2013/A1
  • EN 50085-2-1:2006
  • EN 50085-2-1:2011/A1
  • NF C 68-104

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP30

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060309EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

aluminium

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Kit

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

500

At least in Europe

Weee label

No

Cabling installation system

  • trunking
  • post
  • service box
  • pole

Type of pole

  • two-sided
  • one-sided

Type of post

  • two-sided
  • one-sided

Type of service box

service box kit

Trunking material

aluminium

Trunking dimension

  • 155 x 55 mm
  • 75 x 55 mm
  • 120 x 55 mm
  • 95 x 55 mm
  • 165 x 55 mm
  • 185 x 55 mm
  • 140 x 55 mm
  • 80 x 55 mm

Pole/post surface finish

  • powder coated
  • anodized

Pole fixing mode

  • free-standing
  • tension-mounted

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.300 cm

Package 1 width

8.000 cm

Package 1 length

21.500 cm

Package 1 weight

8.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

1.500 cm

Package 2 width

4.000 cm

Package 2 length

22.500 cm

Package 2 weight

105.000 g

Unit type of package 3

S03

Number of units in package 3

500

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

4.587 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

90215406-b6bf-44f8-b463-8540d32a6f6b

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Technical Data Catalogues

  • Other technical guide

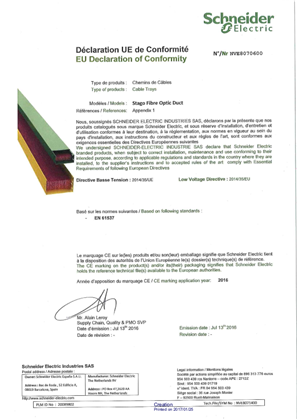

  • Declaration of Conformity
