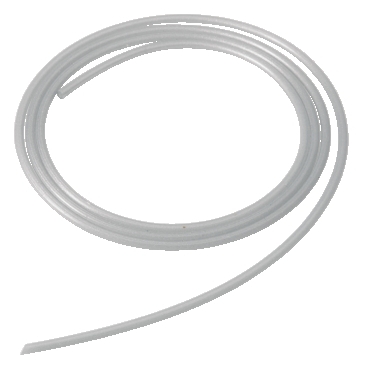

OptiLine 45 decorative stripe grey

OptiLine 45 decorative stripe grey

Item Number: ISM20822

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product
  • OptiLine 45
  • OptiLine 70
  • OptiLine 50
Product or component type decorative stripe
Colour tint grey (RAL 7043)
Market segment
  • small commercial
  • residential
Warranty 18 months

Physical

Quantity per set 5 m
Length 5000 mm
Standards
  • EN 50085-1:2005
  • NF C 68-102
Ambient air temperature for operation -25...60 °C
Ip degree of protection IP30
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP060309EN
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant

Material

Material silicone rubber

Others

Legacy weee scope Out
Package 1 bare product quantity 1
At least in Europe
Warranty duration(in months) bmecat 18
Weee label No
Cabling installation system
  • post
  • pole
Type of pole
  • one-sided
  • two-sided
Type of post
  • one-sided
  • two-sided
Pole/post surface finish
  • powder coated
  • anodized
Pole fixing mode
  • tension-mounted
  • free-standing
Diameter 3.5 mm
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 3.000 cm
Package 1 width 13.000 cm
Package 1 length 13.000 cm
Package 1 weight 52.000 g
Unit type of package 2 S03
Number of units in package 2 20
Package 2 height 30.000 cm
Package 2 width 30.000 cm
Package 2 length 40.000 cm
Package 2 weight 1.527 kg
Sustainable packaging Yes
China rohs label 1
End of life manual availability N/A
Warranty (in months) 18
