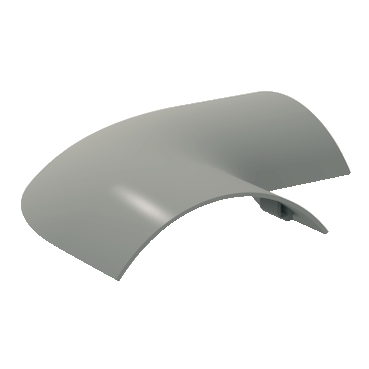

OptiLine 45, cable feeder, grey

OptiLine 45, cable feeder, grey

Item Number: ISM20819

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

OptiLine 70|OptiLine 50|OptiLine 45

Product or component type

cable feeder

Colour tint

grey (RAL 7030)

Market segment

small commercial|residential

Warranty

18 months

Physical

Quantity per set

set of 10

Fixing mode

snap-fitted

Length

120 mm

Height

20 mm

Width

120 mm

Standards

EN 50085-1:2005|NF C 68-102

Ambient air temperature for operation

-25...60 °C

Ip degree of protection

IP30

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP060309EN

Circularity profile

N/A

Material

Material

PVC (polyvinyl chloride)

Others

Package 1 bare product quantity

1

Cabling installation system

pole|post

Type of pole

one installation box|two installation boxes|two-sided|one-sided

Type of post

one-sided|two-sided

Pole/post surface finish

powder coated|anodized

Pole fixing mode

tension-mounted

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.970 cm

Package 1 width

12.000 cm

Package 1 length

12.000 cm

Package 1 weight

28.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

1.900 cm

Package 2 width

12.000 cm

Package 2 length

12.000 cm

Package 2 weight

374.000 g

Unit type of package 3

BB2

Number of units in package 3

10

Package 3 height

1.900 cm

Package 3 width

12.000 cm

Package 3 length

12.000 cm

Package 3 weight

374.000 g
