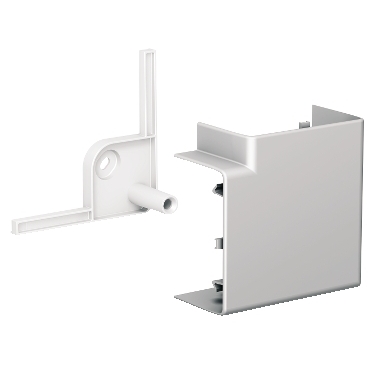

OptiLine 70 bend 90°, PC/ABS, aluminium metallic

Qty	UoM	EAN	Colour
1	PCE	3606480029226	-

Specifications

Design

Market segment	residential small commercial
Range of product	OptiLine 70
Product or component type	bend 90°
Colour tint	aluminium metallic
Warranty	18 months

Physical

Quantity per set	set of 1
Fixing mode	screw snap-fitted
Length	212 mm
Height	212 mm
Standards	73/23/EEC 93/68/EEC EN 50085-1:2005 EN 50085-1:2013/A1 EN 50085-2-1:2006 NF C 68-102 EN 50085-2-1:2011/A1
Ambient air temperature for operation	-25...60 °C
Ip degree of protection	IP40
Ik degree of protection	IK07
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP060309EN
Eu rohs directive	Compliant

Material

Material	PC/ABS painted

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
	At least in Europe
Weee label	No
Warranty duration(in months) bmecat	18
Cabling installation system	trunking
Trunking material	aluminium
Trunking dimension	185 x 55 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.7 cm
Package 1 width	21.2 cm
Package 1 length	21.2 cm
Package 1 weight	234.0 g
Unit type of package 2	S03
Number of units in package 2	10
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	3.053 kg
Unit type of package 3	P12
Number of units in package 3	80
Package 3 height	45.0 cm
Package 3 width	80.0 cm
Package 3 length	120.0 cm
Package 3 weight	35.608 kg
Sustainable packaging	Yes
End of life manual availability	N/A
Warranty (in months)	18
