Datasheet
Close
Specifications
Design
| Range of product | OptiLine 70 |
|---|---|

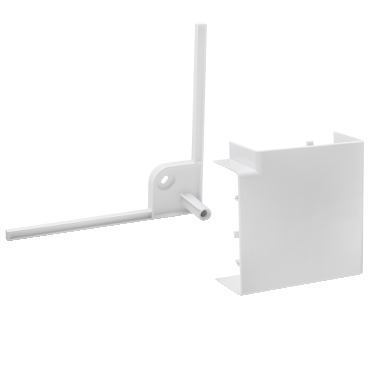

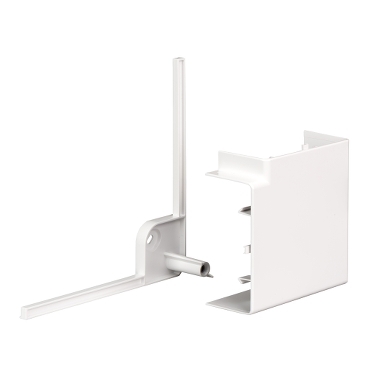

| Product or component type | bend 90° |
| Colour tint | polar white (RAL 9003) |
Physical
| Quantity per set | set of 1 |
|---|---|
| Fixing mode |
|
| Length | 147 mm |
| Height | 147 mm |
| Width | 57 mm |
| Standards |
|
| Ambient air temperature for operation | -25...60 °C |
| Ip degree of protection | IP40 |
| Ik degree of protection | IK07 |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP060310EN |
| Eu rohs directive | Compliant |
Material
| Material | PC/ABS |
|---|
Documents & downloads
Filter items
-
All
-
Declaration of Conformity (Sustainability)
