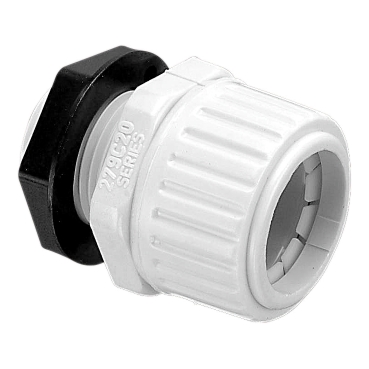

Clipsal - Cable Management, Straight Gland, 25mm

Clipsal - Cable Management, Straight Gland, 25mm Grey

Item Number: 279C25-GY

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 279C

Physical

Tool type

35 mm wrench

Cable outer diameter

25 mm

Installation direction

straight

Ambient air temperature for operation

-15...65 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP100203EN

Circularity profile

N/A

Material

Material

PVC (polyvinyl chloride)

Device composition

lock nut

Others

Package 1 bare product quantity

1

Thread type

M25

Threaded length

1.5 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.0 cm

Package 1 width

4.4 cm

Package 1 length

7.7 cm

Package 1 weight

32.0 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
