Colour ()
- 1 PCE 0

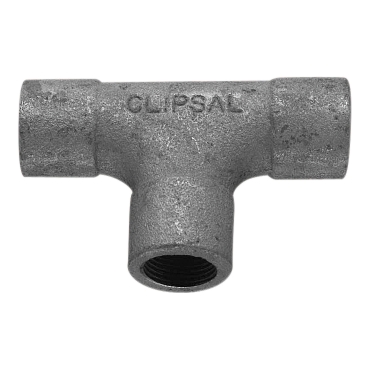

Clipsal - Cable Management Solid Tee 20mm Galvanised Cast Iron
Item Number: 1246S20
Colour ()
- 1 PCE 0
Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | PCE | 9311554129354 | - |
| 10 | CRT | 9311554129361 | - |
| 50 | CAR | 19311554308855 | - |
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range of product | Series 1246 |
| Surface treatment | galvanised |
Physical
| Length |
|
|---|---|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP110719EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | cast iron |
|---|
Others
| Legacy weee scope | Out |
|---|---|
| Package 1 bare product quantity | 1 |
| Outside of Europe | |
| Warranty duration(in months) bmecat | 18 |
| Weee label | N/A |
| Diameter | inner: 20 mm |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 2 cm |
| Package 1 width | 5.5 cm |
| Package 1 length | 8.5 cm |
| Package 1 weight | 0.227 kg |
| Sustainable packaging | No |
| China rohs label | 1 |
| End of life manual availability | N/A |
| Warranty (in months) | 18 |
