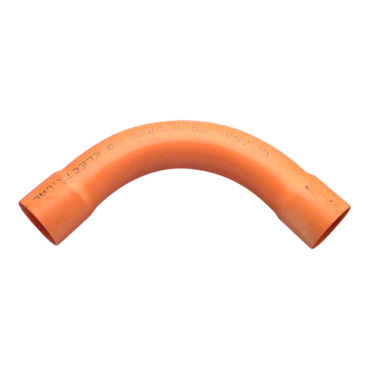

Clipsal - Cable Management Conduit Elbow Solid, 90Deg, PVC, 80mm

Clipsal - Cable Management Conduit Elbow Solid, 90Deg, PVC, 80mm | Electric Orange

Item Number: 245P80-EO

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 245

Physical

Length

390 mm

Standards

AS/NZS 2053

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP100802EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PVC (polyvinyl chloride)

Others

Legacy weee scope

Out

Weee label

N/A

Outside of Europe

Package 1 bare product quantity

1

Diameter

80 mm

Operating angle

90 °

Inner radius

230 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

43 cm

Package 1 length

37.8 cm

Package 1 weight

1.16 kg

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
