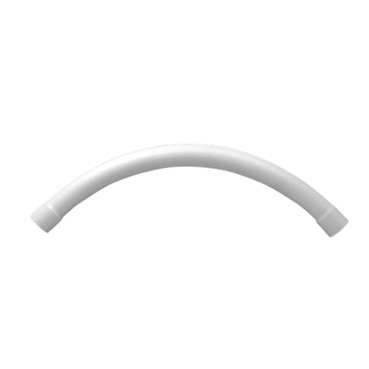

Clipsal - Cable Management Conduit Bend Solid, Polypropylene, 90Deg, 80mm | White Electric

Item Number: C247P80-WE

White Electric 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554419721	WE

Specifications

Design

Product brand	Clipsal
Range of product	Series 247

Physical

Length	660 mm
Environmental characteristic	chemical pollution resistance
Standards	AS/NZS 2053
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2309044_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant

Material

Material	polypropylene

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Diameter	80 mm
Operating angle	90 °
Inner radius	550 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	1.400 kg
Total lifecycle carbon footprint	44 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	26.820432692307694
Carbon footprint of the manufacturing phase [a1 to a3]	27 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	2.879927884615385
Carbon footprint of the distribution phase [a4]	3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	10.207211538461538
Carbon footprint of the installation phase [a5]	10 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.405793269230769
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	44.31336538461539
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
