Clipsal - Cable Management Conduit Bend Large Sweep, 90Deg, PVC, 32mm

Home ProductsCable ManagementClipsal - Cable ManagementConduit Bend

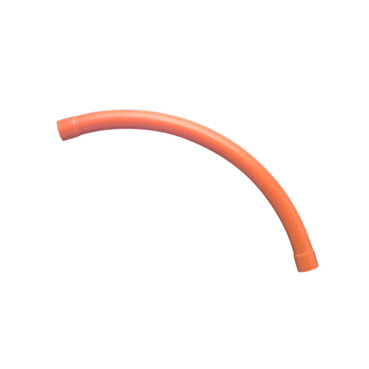

Clipsal - Cable Management Conduit Bend Large Sweep, 90Deg, PVC, 32mm | Electric Orange

Item Number: 247L32-EO

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product brand

Clipsal

Range of product

Series 247L

Physical

Length

350 mm

Standards

AS/NZS 2053

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2309028_V1

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PVC (polyvinyl chloride)

Others

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Diameter

32 mm

Operating angle

90 °

Inner radius

312 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

4.5 cm

Package 1 length

51.5 cm

Package 1 weight

216 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

184 cm

Package 2 width

316 cm

Package 2 length

474 cm

Package 2 weight

2.708 kg

Total lifecycle carbon footprint

4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.02793684210526

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.172955368421052

Carbon footprint of the distribution phase [a4]

0.2 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.612985263157894

Carbon footprint of the installation phase [a5]

0.6 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.68904

Carbon footprint of the end-of-life phase [c1 to c4]

0.7 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

3.50291747368421

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
