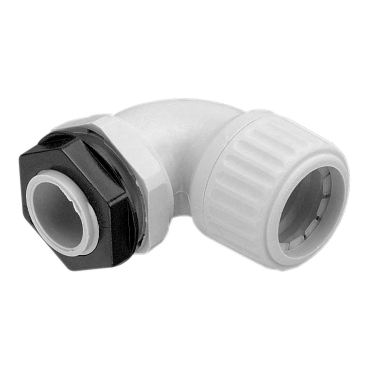

Clipsal - Cable Management Angled Gland (90°), 25mm | Grey

Item Number: 279AC25-GY

Grey 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554159962	GY
10	CRT	9311554004798	GY
100	CAR	29311554159966	GY

Specifications

Design

Product brand	Clipsal
Range of product	Series 279AC
Product or component type	elbow

Physical

Cable outer diameter	25 mm
Ip degree of protection	IP54
Ambient air temperature for operation	-15...65 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2309044EN
Eu rohs directive	Compliant

Material

Material	PVC (polyvinyl chloride)
Device composition	lock nut

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Thread type	M25
Threaded length	1.5 mm
Operating angle	90 °
Main colour tint	grey
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.5 cm
Package 1 width	3.5 cm
Package 1 length	8.2 cm
Package 1 weight	44.08 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8444604807692307
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.09067658653846153
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.3213813461538461
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.13871954807692308
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.3952379615384614
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
