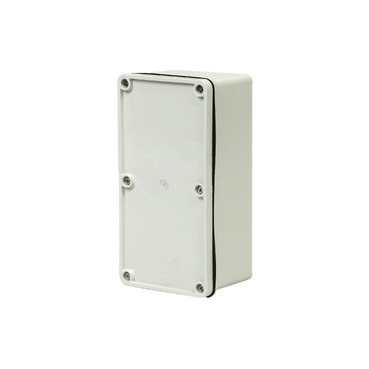

Clipsal - Cable Management Adaptable Box PVC, L-211 x W-108 x H-81mm

Clipsal - Cable Management Adaptable Box PVC, L-211 x W-108 x H-81mm | Grey

Item Number: 265/5-GY

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product Series 265
Product brand Clipsal

Physical

Reach free of svhc Yes
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP2309044EN
Reach regulation Free of Substances of Very High Concern above the threshold
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant

Material

Material PVC (polyvinyl chloride)

Others

Legacy weee scope Out
Package 1 bare product quantity 1
Average percentage of recycled plastic content 0 %
Outside of Europe
Weee label N/A
Weee applicability Component
Weee exclusion rationale Component not in scope – non independent function
Warranty duration(in months) bmecat 18
Shape rectangular
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 8.6 cm
Package 1 width 11.1 cm
Package 1 length 21.6 cm
Package 1 weight 0.612 kg
Unit type of package 2 CAR
Number of units in package 2 15
Package 2 height 21.0 cm
Package 2 width 34.8 cm
Package 2 length 44.5 cm
Package 2 weight 9.5 kg
Total lifecycle carbon footprint 4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 2.5008334177
Carbon footprint of the manufacturing phase [a1 to a3] 3 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 0.0112507291
Carbon footprint of the distribution phase [a4] 0 kg CO2 eq.
Carbon footprint of the installation phase [a5] 0.2346516456
Carbon footprint of the installation phase [a5] 0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 0
Carbon footprint of the use phase [b2, b3, b4, b6] 0 kg CO2 eq.
Sustainable packaging No
Carbon footprint of the end-of-life phase [c1 to c4] 1.2573501266
Carbon footprint of the end-of-life phase [c1 to c4] 1 kg CO2 eq.
Pvc free Yes
Halogen-free status Product contains halogen above thresholds
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 4.004085919
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard No
Packaging without single use plastic No
China rohs label 1
Halogen-free status Product contains halogen above thresholds
Pvc free Yes
End of life manual availability N/A
Take-back No
Warranty (in months) 18
