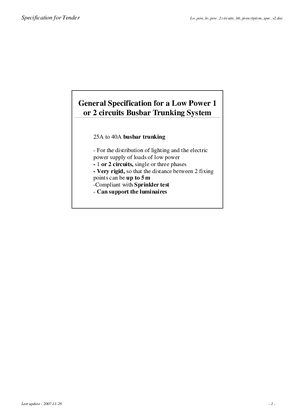

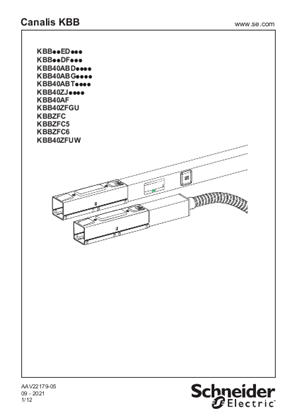

Canalis KBB, Straight length, 40A, 2 circuits 3L+N+PE/L+N+PE, 3 tap-off units, 2m

Canalis KBB, Straight length, 40A, 2 circuits 3L+N+PE/L+N+PE, 3 tap-off units, 2m

Item Number: KBB40ED42203

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Canalis

Range of product

Canalis

Product compatibility

KBB

Product or component type

busbar trunking

Device application

  • lighting
  • power socket distribution

Warranty

18 months

Physical

[ie] rated operational current

40 A at 35 °C

[ue] rated operational voltage

230...400 V

Control type

without

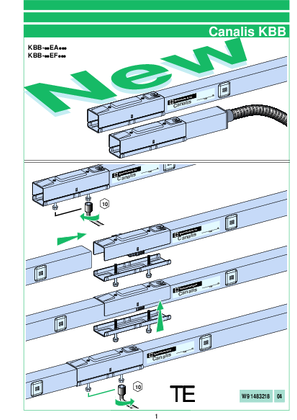

Mounting mode

by screws

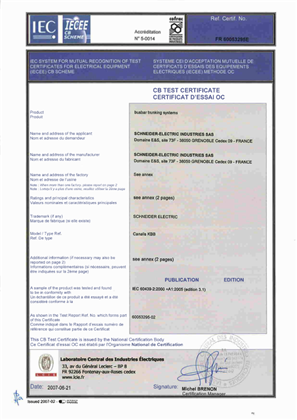

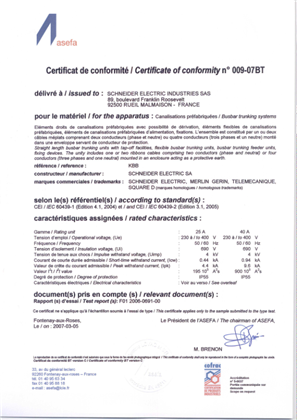

Standards

  • EN/IEC 61439-6
  • EN/IEC 61439-1

Width

30 mm

Height

46 mm

Length

2 m

Net weight

3.8 kg

Ip degree of protection

IP55 conforming to EN/IEC 60529

Ik degree of protection

IK06 conforming to EN/IEC 62262

Ambient air temperature for operation

  • 0...35 °C (100 % of In)
  • 35...40 °C (96 % of In)
  • 40...45 °C (93 % of In)
  • 45...50 °C (89 % of In)
  • 50...55 °C (85 % of In)

Others

Device short name

KBB

Busbar description

straight length

Network frequency

50/60 Hz

Busbar trunking polarity

3L + N + PE

Number of circuits

2

Number of tap-off outlets

3

[uimp] rated impulse withstand voltage

4 kV

[ui] rated insulation voltage

690 V

[icw] rated short-time withstand current

0.94 kA

[ipk] rated peak withstand current

9.6 kA

Thermal stress limit

900 kA².s

Maximum radiated magnetic field

2 pT

Thdi

  • 0...15 % 40 A
  • 15...33 % 32 A
  • 33...100 % 28 A

Maximum voltage drop

  • <0.3 V with power factor = 1 at 50 Hz with 1A for 100 m long
  • <0.28 V with power factor = 0.9 at 50 Hz with 1A for 100 m long
  • <0.25 V with power factor = 0.8 at 50 Hz with 1A for 100 m long
  • <0.22 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

Linear resistance

  • 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor
  • 0.8 mΩ/m protective conductor
  • 2.83 mΩ/m R20 20 °C phase conductor
  • 3.46 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor
  • 3.46 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor
  • 13.83 mΩ/m R0 20 °C symmetrical components method Ph/PE
  • 0.73 mΩ/m X0 20 °C symmetrical components method Ph/PE
  • 13.85 mΩ/m Z0 20 °C symmetrical components method Ph/PE
  • 5.68 mΩ/m Rb0 20 °C impedance method Ph/Ph
  • 5.68 mΩ/m Rb0 20 °C impedance method Ph/N
  • 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph
  • 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N
  • 17.28 mΩ/m R0 20 °C symmetrical components method Ph/N
  • 5.25 mΩ/m X0 20 °C symmetrical components method Ph/N
  • 18.06 mΩ/m Z0 20 °C symmetrical components method Ph/N
  • 6.92 mΩ/m Rb0 20 °C impedance method Ph/PE
  • 6.92 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph
  • 6.92 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N
  • 7.14 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE
  • 1.85 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE

Unit type of package 1

PCE

Number of units in package 1

1
