Specifications
Design
| Range | Canalis |
|---|---|
| Range of product | Canalis |

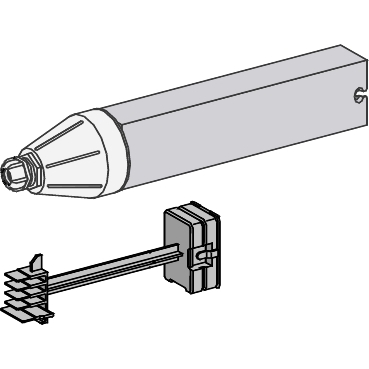

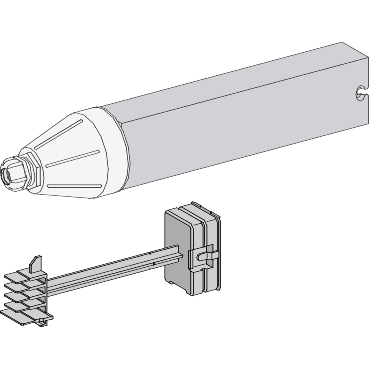

| Product or component type | feed unit |
| Warranty | 18 months |
Physical
| [ie] rated operational current | 25 A |
|---|---|
| [ue] rated operational voltage | 230...400 V |
| Protection type | without protection |
| Control type | without |
| Provided equipment | end cover |
| Mounting mode | by screws |
| Mounting support | busbar |
| Connections - terminals | terminal block - screw clamp connector for 4-4 mm² |
| Width | 273 mm |
| Depth | 57 mm |
| Height | 57 mm |
| Standards |
|
| Ip degree of protection | IP55 conforming to IEC 60529 |
| Environmental disclosure | ENVPEP061101EN |
| Eu rohs directive | Compliant |
Material
| Material | aluminium |
|---|
Documents & downloads
Filter items
-
All
-

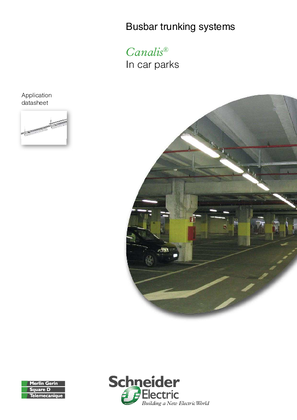

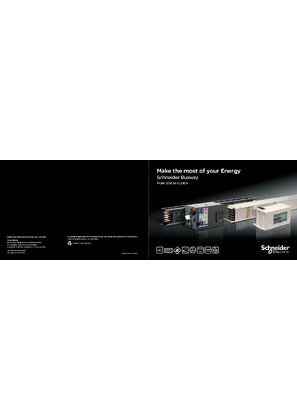

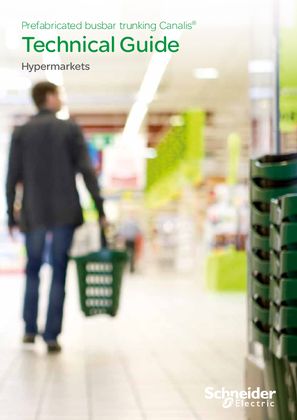

Product Brochures
-

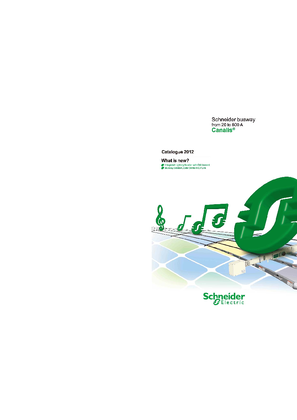

Technical Data Catalogues
-

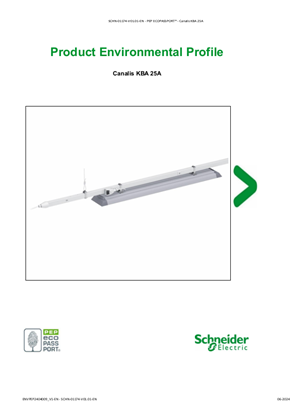

Environmental Disclosure
-
