Canalis KBA End feed unit 40A, right mounting, 1 circuit, 3L+N+PE

Home ProductsCable ManagementCanalis KBAEnd feed unit

Canalis KBA End feed unit 40A, right mounting, 1 circuit, 3L+N+PE

Item Number: KBA40ABD4

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width320 mm

Height icon

Height78.5 mm

Depth icon

Depth75.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Canalis

Range of product

Canalis

Product compatibility

Canalis KBA busbar trunking 25-40 A

Product or component type

feed unit

Warranty

18 months

Physical

[ie] rated operational current

40 A

[ue] rated operational voltage

230...400 V

Protection type

without protection

Control type

without

Provided equipment

end cover

Mounting mode

by screws

Mounting support

busbar

Connections - terminals

terminal block - Pg 21 - screw clamp connector for 10-10 mm²

Width

320 mm

Depth

75.5 mm

Height

78.5 mm

Standards

IEC 61439-6

Ip degree of protection

IP55 conforming to IEC 60529

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2404009EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

aluminium

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

PEP created standard configuration, but individal CR is component

Substance regulation data deliverable

Yes

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

KBA

Number of circuits

1

Busbar trunking polarity

  • 3L + N + PE
  • L + N + PE

Mounting location

right

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

7.5 cm

Package 1 length

39 cm

Package 1 weight

650 g

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Halogen free product

Silicone-free

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

Yes

Silicone-free

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Declaration of Conformity (Sustainability)

  • Software - Release

Important: Some software files may need a mySchneider or Club login to download.
Schneider Electric Busway mini Brochure
ZIP

Schneider Electric Busway mini Brochure

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.3 MB
Canalis Application Carpark
ZIP

Canalis Application Carpark

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 298.6 KB
Canalis Application Supermarkets
ZIP

Canalis Application Supermarkets

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 18.6 MB
Canalis Catalogue 2012
ZIP

Canalis Catalogue 2012

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 19.9 MB

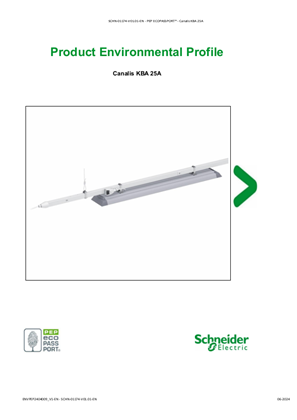

Canalis KBA 25A
