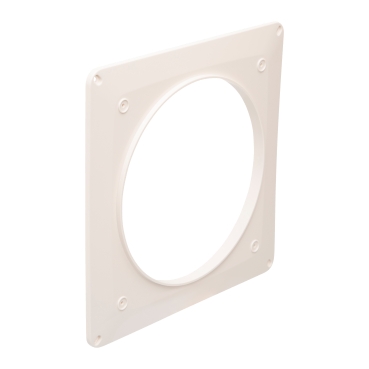

Airflow Wall Plate for 6100 and 7100 Fans

Item Number: 7100WP

1 PCE 0

For added ease and flexibility when fitting a Clipsal Airflow Performance Exhaust Fan the Clipsal Airflow Wall Plate gives you structure and support. If you are replacing an existing fan, the wall plate may be required if the hole diameter is different.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554564001	-
10	CAR	19311554564008	-

Specifications

Design

Product brand	Clipsal
Product or component type	wall plate

Physical

Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2302013_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.6 cm
Package 1 width	34.0 cm
Package 1 length	33.8 cm
Package 1 weight	0.22 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	313 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.0328423211645779
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06372654262616038
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.061586111370083775
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	311.39
Carbon footprint of the use phase [b2, b3, b4, b6]	311 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.46831639652118323
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	313.016471371682
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
