Airflow Performance Exhaust Fan Window Mount, 150mm, Pull Cord

Home ProductsAir Movement & HeatingAirflowPerformance Exhaust Fan

Airflow Performance Exhaust Fan Window Mount, 150mm, Pull Cord

Item Number: 7007A

1 PCE 0

Featuring pull chord shutter operation, this Clipsal Airflow 150mm Performance Exhaust Fan is designed to be window mounted. The patented window seal solution prevents water entry and eliminates window vibration.

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554561277	-
2	CAR	9311554609047	-

Specifications

Design

Range of product	MaxAir Airflow
Product brand	Clipsal

Physical

[ue] rated operational voltage	230...240 V AC
Power consumption in w	45 W
[in] rated current	0.27 A full load
Ip degree of protection	IPx4
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2302013_V2
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Air flow	360 m3/h
Diameter	148 mm impeller:
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	20.5 cm
Package 1 width	24.5 cm
Package 1 length	24.5 cm
Package 1 weight	2324.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	329 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	10.910570701756724
Carbon footprint of the manufacturing phase [a1 to a3]	11 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.6731840230145306
Carbon footprint of the distribution phase [a4]	0.7 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.650573285563976
Carbon footprint of the installation phase [a5]	0.7 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	311.39
Carbon footprint of the use phase [b2, b3, b4, b6]	311 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.947124115978318
Carbon footprint of the end-of-life phase [c1 to c4]	5 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	328.57145212631355
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Other technical guide
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Specification Guide
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Clipsal Residential Energy-Efficient Solutions

Clipsal Residential Energy-Efficient Solutions

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 6.7 MB

MaxAir, Refreshingly powerful

MaxAir, Refreshingly powerful

VERSION

1.0

DATE

29 Sept 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.2 MB

Fans for all seasons … and reasons

Fans for all seasons … and reasons

VERSION

1.0

DATE

29 Sept 2023

REVISION

1.0

DOWNLOAD (ZIP) 861.7 KB

Energy Efficiency Trade Product Guide, 20742

Energy Efficiency Trade Product Guide, 20742

VERSION

1.0

DATE

29 Sept 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB

MaxAir Replacement Table

MaxAir Replacement Table

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 810.3 KB

Clipsal Airflow catalogue 998-20382536

Clipsal Airflow catalogue 998-20382536

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB

Circulation Exhaust Fans and Ventilation Equipment - Catalog

Circulation Exhaust Fans and Ventilation Equipment - Catalog

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 6.4 MB

Fan Ceiling Exhaust 250mm

Fan Ceiling Exhaust 250mm

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 269.5 KB

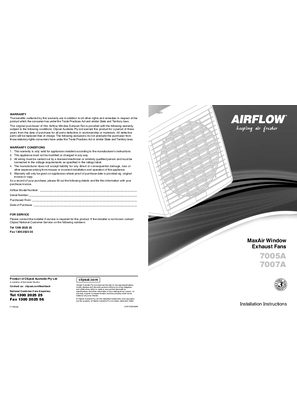

Installation Instructions - F1763/02 - 7005A, 7007A MaxAir Window Exhaust Fans, 18998
