Airflow, Performance Exhaust Fan, Wall Mount, 190mm, Axial

Item Number: 7106A

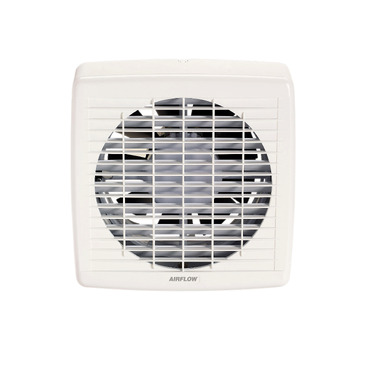

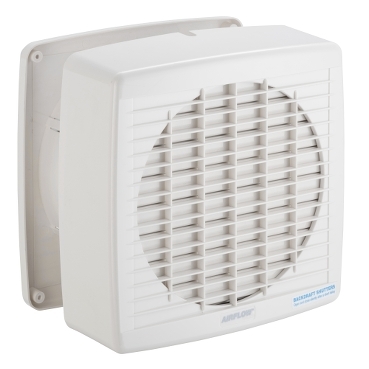

The Clipsal Airflow 7106 Axial Wall Exhaust Fan offers high performance air extraction with whisper quiet operation. The stylish, low profile grille can be removed easily for cleaning. The fan has automatic shutters, which silently operate to efficiently exhaust the air.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

MaxAir|Airflow

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

[ue] rated operational voltage

230...240 V AC

Power consumption in w

38 W

[in] rated current

0.18 A full load

Ip degree of protection

IPx4

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2302013_V2

Circularity profile

N/A

Others

Commercial status history

SESA301466 | Tue Oct 03 20:21:00 EDT 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Air flow

600 m3/h

Diameter

188 mm impeller:

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

21.4 cm

Package 1 width

28.4 cm

Package 1 length

28.4 cm

Package 1 weight

2.86 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Other technical guide

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity

Clipsal Residential Energy-Efficient Solutions
ZIP

Clipsal Residential Energy-Efficient Solutions

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 6.7 MB

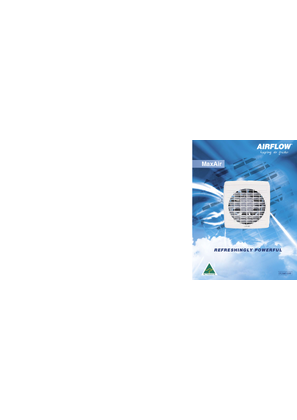

MaxAir, Refreshingly powerful
ZIP

MaxAir, Refreshingly powerful

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.2 MB
Fans for all seasons … and reasons
ZIP

Fans for all seasons … and reasons

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 861.7 KB
Energy Efficiency Trade Product Guide, 20742
ZIP

Energy Efficiency Trade Product Guide, 20742

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
Residential Energy Efficiency Guide
ZIP

Residential Energy Efficiency Guide

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 5.8 MB

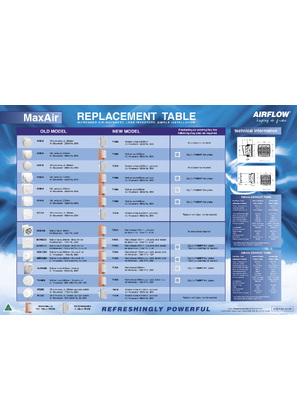

MaxAir Replacement Table
ZIP

MaxAir Replacement Table

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 810.3 KB
Clipsal Airflow catalogue 998-20382536
ZIP

Clipsal Airflow catalogue 998-20382536

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 3.8 MB
Air Circulation Exhaust Fans and Ventilation Technical Data, 20897
ZIP

Air Circulation Exhaust Fans and Ventilation Technical Data, 20897

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 6.4 MB
Fan Ceiling Exhaust 250MM - Product End of Life Instructions
ZIP

Fan Ceiling Exhaust 250MM - Product End of Life Instructions

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 265 KB
Fan Ceiling Exhaust 250mm
ZIP

Fan Ceiling Exhaust 250mm

VERSION

1.0

DATE

04 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 269.5 KB

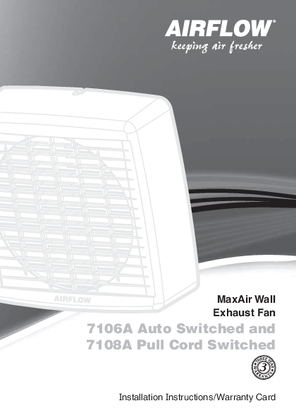

Installation Instructions - F1698/03 - 7106A, 7108A MaxAir Wall Exhaust Fan, 19005
ZIP

Installation Instructions - F1698/03 - 7106A, 7108A MaxAir Wall Exhaust Fan, 19005

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 472.4 KB

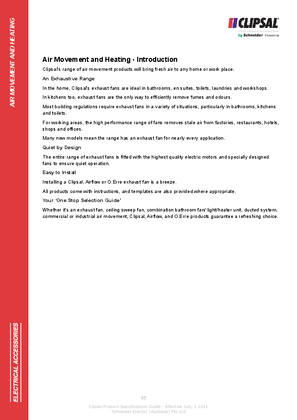

Technical Specifications - Air Movement and Heating - Introduction
ZIP

Technical Specifications - Air Movement and Heating - Introduction

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 158.1 KB

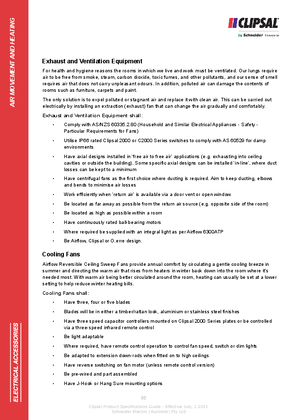

Technical Specifications - Exhaust and Ventilation Equipment
ZIP

Technical Specifications - Exhaust and Ventilation Equipment

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 159.1 KB
Technical Specifications - Cooling Fans
ZIP

Technical Specifications - Cooling Fans

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 159.1 KB
Technical Specifications - Fan Light Heater Units
ZIP

Technical Specifications - Fan Light Heater Units

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 158.3 KB
Clipsal Airflow, 7100 series fans, Certificate, RCM, Global Mark Pty LTD
ZIP

Clipsal Airflow, 7100 series fans, Certificate, RCM, Global Mark Pty LTD

VERSION

2.0

DATE

23 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 829.8 KB

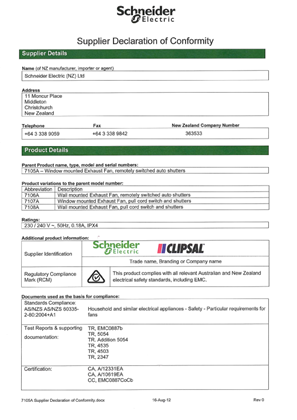

7105A Supplier Declaration of Conformity
ZIP

7105A Supplier Declaration of Conformity

VERSION

1.0

DATE

07 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 552.5 KB

Frequently Asked Questions

hide show

What is the replacement part number for wall exhaust fan 6110-0?

7106A  with 2 wall plates 7100WP can be used as an alternate to the wall exhaust fan 6110-0.
7106A is a 200mm wall mounted exhaust fan, switched remotely, auto shutters, BCA axial fan, IPX4, 38W, 230mm diameter cut out, 600m³/hr. For further information, please visit
http://www.clipsal.com/Trade/Products/ProductDetail?catno=7106A
User-added image

7100WP is a wall plate to cover cutting errors for 7100 Series MaxAir fans (200mm) or to assist the replacement of older style Airflow or Mistral wall fans. For further information, please visit
http://www.clipsal.com/Trade/Products/ProductDetail?catno=7100WP
User-added image
