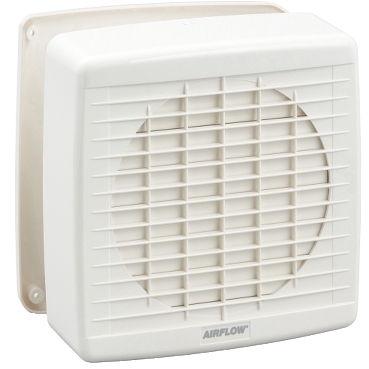

Airflow Performance Exhaust Fan Wall Mount, 150mm, Pull Cord

Item Number: 7008A

1 PCE 0

Designed for mounting on walls between 110 and 310mm thick, the Clipsal Airflow Performance Exhaust Fan is supplied with unique ductwork for easy installation. No cable ties or tape is needed and the duct attaches easily to the fan's "duct grippers". The fan can be configured for a flex and plug, or for direct wiring.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554561284	-
2	CAR	9311554609054	-

Specifications

Design

Range of product	Airflow MaxAir
Product brand	Clipsal

Physical

[ue] rated operational voltage	230...240 V AC
Power consumption in w	45 W
[in] rated current	0.27 A full load
Ip degree of protection	IPx4
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2302013_V2
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Air flow	360 m3/h
Diameter	148 mm impeller:
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	20.8 cm
Package 1 width	25.0 cm
Package 1 length	25.2 cm
Package 1 weight	2.02 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	326 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	9.483370403420217
Carbon footprint of the manufacturing phase [a1 to a3]	9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5851255277492908
Carbon footprint of the distribution phase [a4]	0.6 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.5654724771253148
Carbon footprint of the installation phase [a5]	0.6 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	311.39
Carbon footprint of the use phase [b2, b3, b4, b6]	311 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.299996004421774
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	326.3239644127166
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Other technical guide
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Specification Guide
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Airflow Performance Exhaust Fan Wall Mount, 150mm, Pull Cord

Item Number: 7008A

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Product Brochures

Other technical guide

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Specification Guide

Declaration of Conformity (Sustainability)

Clipsal Residential Energy-Efficient Solutions

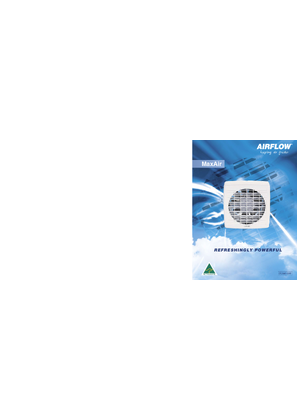

MaxAir, Refreshingly powerful

Fans for all seasons … and reasons

Energy Efficiency Trade Product Guide, 20742

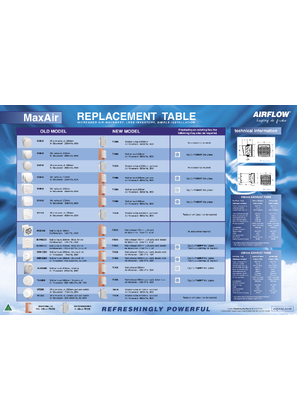

MaxAir Replacement Table

Clipsal Airflow catalogue 998-20382536

Circulation Exhaust Fans and Ventilation Equipment - Catalog

Fan Ceiling Exhaust 250mm

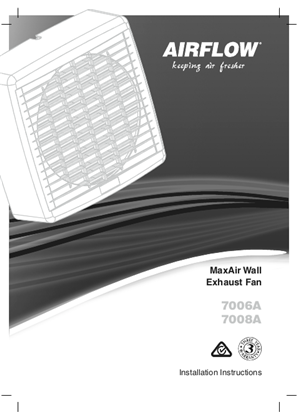

MaxAir Wall Exhaust Fan

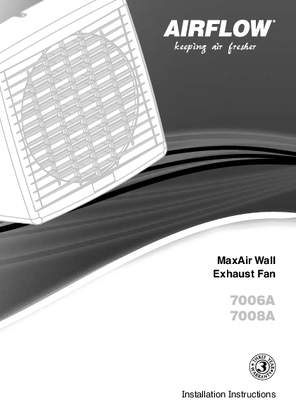

Installation Instructions - F1771/01 - 7006A, 7008A MaxAir Wall Exhaust Fan, 19000

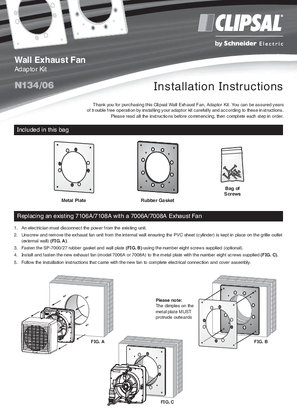

Installation Instructions - F1991/02 - N134/06 Wall Exhaust Fan Adaptor Kit, 19235
