Airflow LED Panel 15W, 47dB

Airflow LED Panel 15W, 47dB | White Electric

Item Number: CPL7000FLH-WE

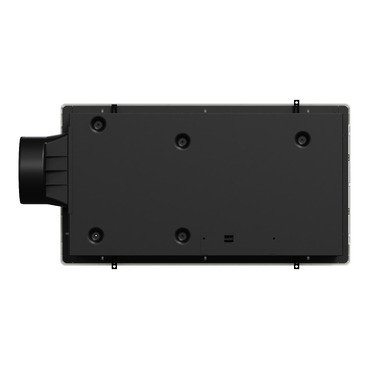

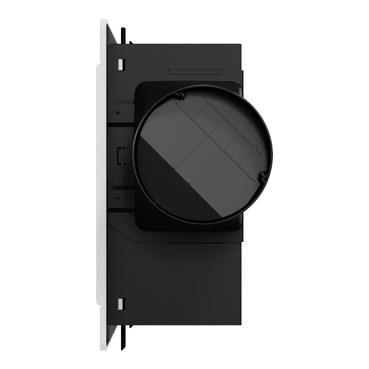

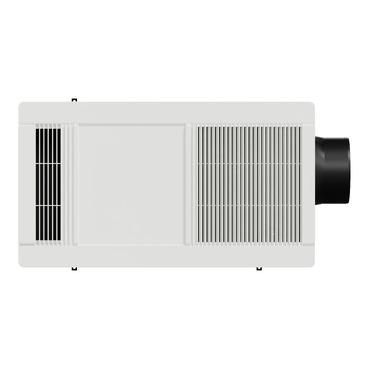

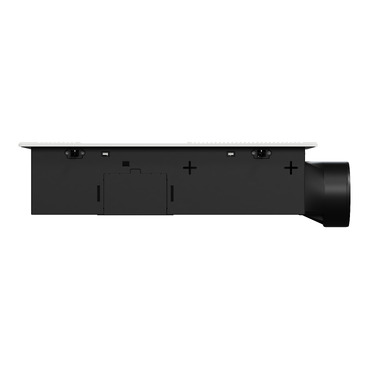

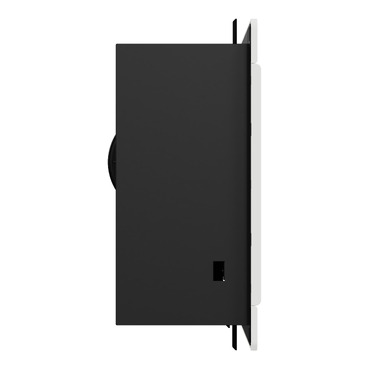

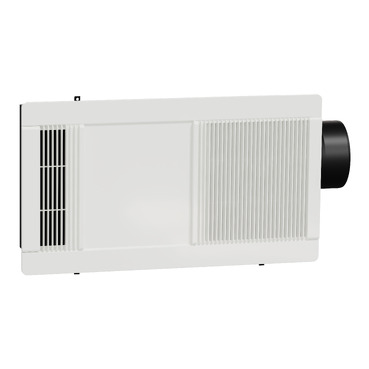

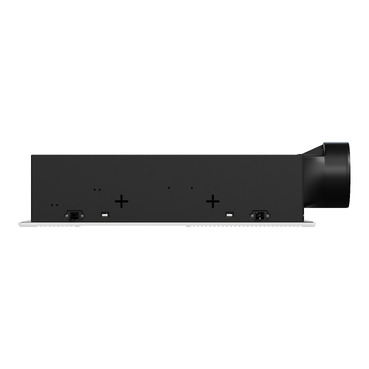

The Clipsal Airflow Fan, Light and Heater units(panel) is suitable for use in residential, commercial, and hotel applications. It is a low-maintenance product. The rated operational voltage is 230/240VAC, and the rated power is 15W. Experience peace and quiet with a noise level of just 47dBA. It has powerful and efficient centrifugal fans to suit your ventilation needs. This device allows for surface mounting. The color of the product is white. Use this product in conjunction with other Clipsal control devices for added functionality.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Airflow

Range

Airflow

Product brand

Clipsal

Product or component type

Fan, Light and Heater units

Product destination

ceiling fitting

Device application

duct

Physical

[ue] rated operational voltage

230/240 V AC 50 Hz

Power consumption in w

1085 W

Depth

190 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

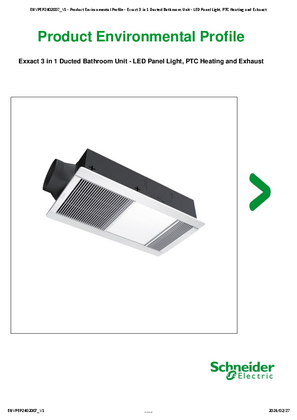

Environmental disclosure

ENVPEP2402007_V1

Circularity profile

ENVEOLI2402007_V1_1

Others

Commercial status history

  • SESA65076
  • Thu Oct 31 19:05:00 EDT 2024
  • From Unitary Local
  • From 02 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

8

Main colour tint

white

Air flow

400 m3/h

Noise level

47 dB

Fan type

centrifugal

Heat dissipation

1000 W

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

39 cm

Package 1 width

40.5 cm

Package 1 length

71.5 cm

Package 1 weight

12.5 kg

Unit type of package 2

PAL

Number of units in package 2

8

Package 2 height

110 cm

Package 2 width

114 cm

Package 2 length

114 cm

Package 2 weight

115 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1532.6668000000002

Global warming ; total life cycle​

1 533 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
