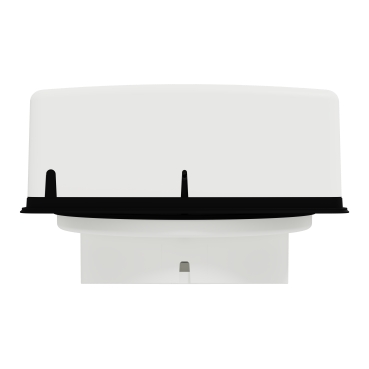

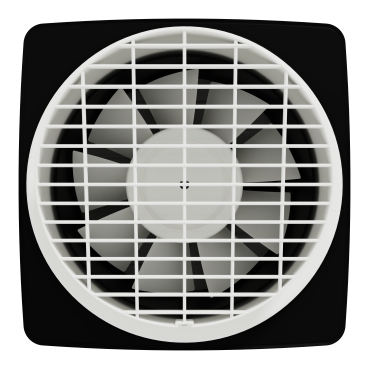

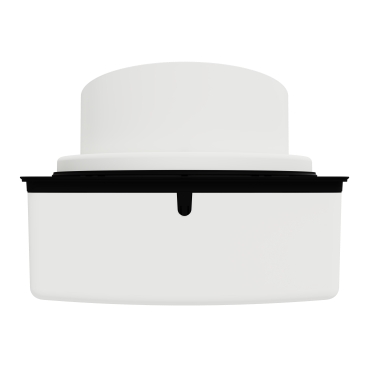

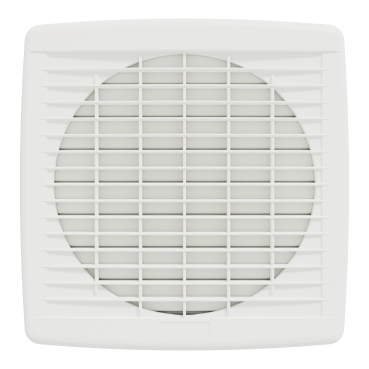

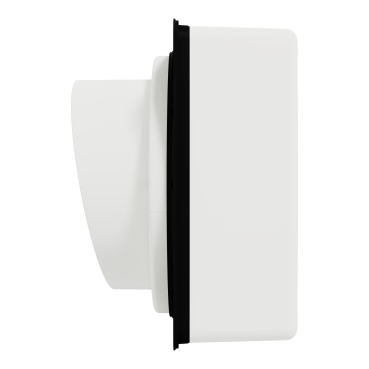

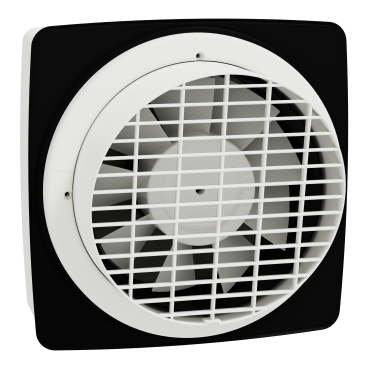

Airflow Exhaust fan window, 200mm blade dia, auto louvre, white

Item Number: 7105AN

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606486373972	-

Specifications

Design

Range of product	Airflow
Range	Airflow
Product brand	Clipsal
Product or component type	exhaust fan
Product destination	window

Physical

Provided equipment	fan 271 mm 271 mm 200 mm
[ue] rated operational voltage	230 V AC 50 Hz
Power consumption in w	38 W
[in] rated current	0.18 A full load
Ip degree of protection	IPx4
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2302013EN
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	64
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Air flow	600 m3/h
Diameter	188 mm impeller:
Motor type	ball bearing
Number of blades	9
Noise level	50 dB
Fan type	axial
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	22 cm
Package 1 width	27.5 cm
Package 1 length	27.5 cm
Package 1 weight	3.317 kg
Unit type of package 2	PAL
Number of units in package 2	64
Package 2 height	109 cm
Package 2 width	113 cm
Package 2 length	113 cm
Package 2 weight	238 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	336 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	15.57244536046775
Carbon footprint of the manufacturing phase [a1 to a3]	16 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.9608224631407908
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.928550597338945
Carbon footprint of the installation phase [a5]	0.9 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	311.39
Carbon footprint of the use phase [b2, b3, b4, b6]	311 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	7.060934033003477
Carbon footprint of the end-of-life phase [c1 to c4]	7 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	335.912752453951
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	36

Show all specifications

Documents & downloads

All
Environmental Disclosure
Installation Instruction
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Fan Ceiling Exhaust 250mm

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 269.5 KB

ZIP

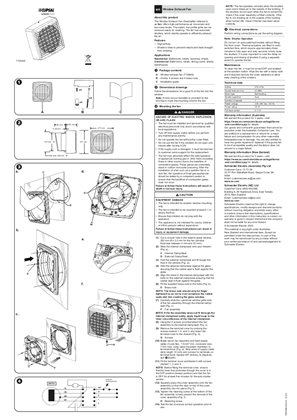

Install and user guide, Clipsal, 7105AN window exhaust fan, auto switch
