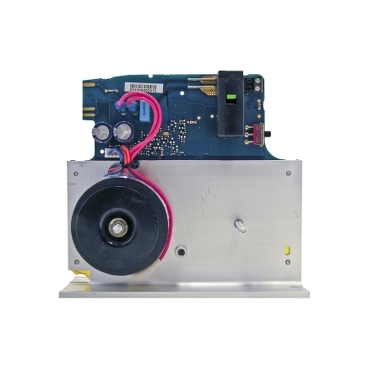

C-Bus DALI Dimmer Control Module Standard Ballast, 12V DC

Home ProductsSmart Home SolutionsC-BusDALI Dimmer Control Module

C-Bus DALI Dimmer Control Module Standard Ballast, 12V DC

Item Number: L51CM-SB

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554725228	-

Specifications

Design

Range	C-Bus
Product or component type	dimmer
Device application	control

Physical

Device presentation	complete device
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1112068EN
Eu rohs directive	Compliant

Others

	Outside of Europe
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	N/A
Weee applicability	Finished product
[ui] rated insulation voltage	500 V
Maximum supply current	0.1 A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.3 cm
Package 1 width	19.2 cm
Package 1 length	21.8 cm
Package 1 weight	787.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0024253809722222224
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00010154048888888892
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000981487375
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	53.41694329244336
Carbon footprint of the use phase [b2, b3, b4, b6]	53 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00015934563888888895
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.061083768600351286
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI2310006EN
Take-back	No
Warranty (in months)	18
