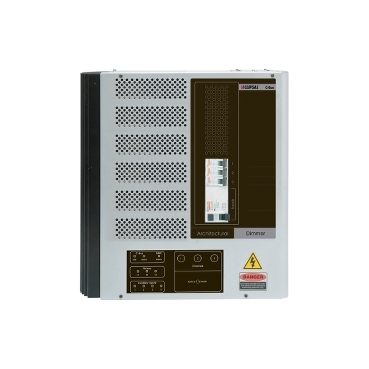

C-Bus Architectural Dimmer with 1 RCD, Universal, 3 Channel, 20A

1 PCE 0

Qty	UoM	EAN	Colour
			-
			-
			-

Qty	UoM	EAN	Colour
1	PCE	9311554707828	-

Specifications

Range	C-Bus
Product or component type	dimmer
Device application	control

Load type	incandescent: 20 W (minimum)
Provided equipment	RCCB, 4
Number of channels	3
Standards	EN 61000-3-3 AS/NZS CISPR 15 EN 61000-3-5 IEC 60669-2-1 EN 55015 EN 55014-1 AS/NZS CISPR 14-1 AS/NZS 3439-1 EN 61000-3-11 EN 61000-3-2 IEC 60439-1
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP111268EN_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
Weee applicability	Finished product
Weee label	N/A
Maximum leakage current	10 mA
[us] rated supply voltage	240 V AC 47...53 Hz 415 V AC 47...53 Hz
Starting time	0.5 s
Rated breaking capacity	6 kA
[ui] rated insulation voltage	500 V
Dielectric strength	2500 V
Directives	2004/108/EC - electromagnetic compatibility
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	61.8 cm
Package 1 width	29.4 cm
Package 1 length	37.0 cm
Package 1 weight	11.0 kg
Total lifecycle carbon footprint	0.9 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.033899861111111124
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.001419244444444445
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00013718374999999993
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	53.41694329244336
Carbon footprint of the use phase [b2, b3, b4, b6]	53 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0022271944444444453
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.8537756729401066
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	ENVEOLI2310006EN
Take-back	No
Warranty (in months)	18
