Clipsal - Motion Sensor PIR Sensor 360 Degree Flush Mount, Dual Load Output, 240VAC 50HZ

Item Number: 753CF2

1 PCE 0

Where To Buy

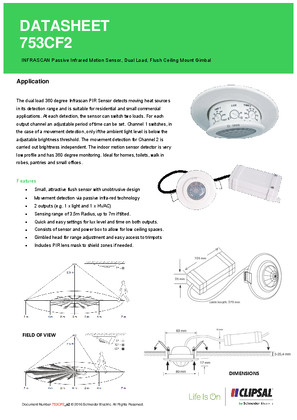

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554788902	-
48	CAR	49311554788900	-

Specifications

Design

Range of product	ARGUS standard movement detector
Range	ARGUS
Product or component type	presence detector with IR receiver
Colour tint	white

Physical

Load type	LED lighting: : 100 W compact fluorescent lamp: : 100 W motor: : 100 W relay: : 5 A - 250 V incandescent lamps: : 1000 W - 230 V halogen lamp: : 900 W - 230 V halogen lamp with standard electronic transformer: 250 VA halogen lamp with standard ferromagnetic transformer: 500 VA capacitive: : 6 A, 21 µF capacitive: : 10 A, 14 µF fluorescent tube: 200 VA
Output current	10 A
Number of channels	2
Control type	movement sensor
Function available	switching, toggling, dimming
Light intensity adjustment	5...1000 lux
Mounting height	2.5...2.5 m
Ip degree of protection	IP20
Reach free of svhc	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2303011EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Weee applicability	Finished product
Network frequency	50/60 Hz
Input function	switch
Output voltage	220...250 V
Horizontal detection angle	360 °
Cable length	0.035 m
Detection face	radius: 3500 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.0 cm
Package 1 width	12.5 cm
Package 1 length	12.5 cm
Package 1 weight	400.0 g
Total lifecycle carbon footprint	16 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	11.80951860852466
Carbon footprint of the manufacturing phase [a1 to a3]	12 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.11494832414732611
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.13139500335638232
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	4.44819999999999
Carbon footprint of the use phase [b2, b3, b4, b6]	4 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.864684125622506
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	16.493397467273333
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	Yes
End of life manual availability	ENVEOLI2303011_V1
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
