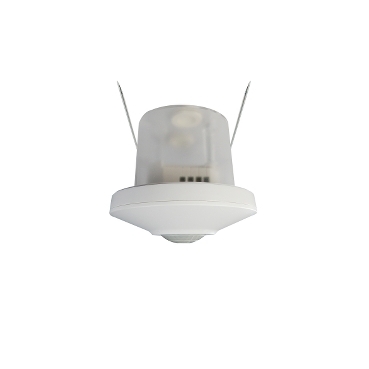

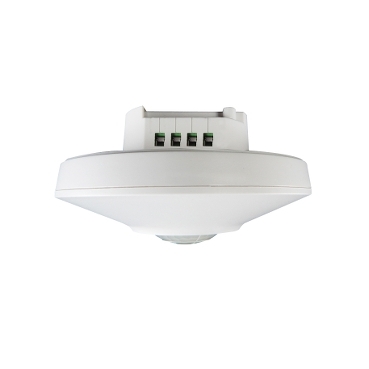

ARGUS Movement detectors PIR Sensor Slave for 752DALIRC, 360deg

Item Number: 752DALIS

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554788513	-

Specifications

Design

Range of product	ARGUS standard movement detector
Range	ARGUS
Product or component type	presence detector with IR receiver
Colour tint	white

Physical

Communication port protocol	DALI
Number of channels	2
Control type	movement sensor
Function available	setting mode slave function
Device mounting	surface flush
Mounting height	2.5...2.5 m
Ip degree of protection	IP44 IP40
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1201002EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Network frequency	50/60 Hz
Horizontal detection angle	360 °
Detection face	radius: 4000 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	12.5 cm
Package 1 width	10.5 cm
Package 1 length	12.5 cm
Package 1 weight	289 g
Unit type of package 2	S03
Number of units in package 2	12
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	4108 g
Unit type of package 3	P12
Number of units in package 3	288
Package 3 height	105 cm
Package 3 width	80 cm
Package 3 length	120 cm
Package 3 weight	113592 g
Sustainable packaging	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Other technical guide
Environmental Disclosure
Operating Manuals
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Clipsal Standalone and System Sensor Selection Guide-Technical leaflet

Clipsal Standalone and System Sensor Selection Guide-Technical leaflet

VERSION

2.0

DATE

21 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 203.9 KB

Technical Data Sheet for 752DALIS DALi PIR Sensor

Technical Data Sheet for 752DALIS DALi PIR Sensor

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 400.3 KB

Technical Data Sheet for 752DALIRC DALi PIR Sensor

Technical Data Sheet for 752DALIRC DALi PIR Sensor

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 520.5 KB

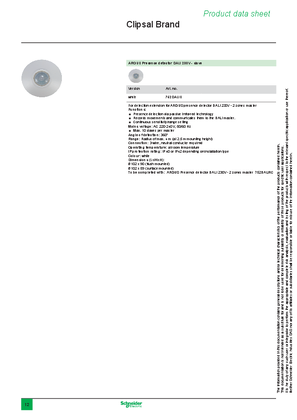

ARGUS Presence detector DALI 230V - slave

ARGUS Presence detector DALI 230V - slave

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 178.3 KB

ARGUS - PIR 220 advanced, polar white - Product Environmental Profile

VERSION

1.0

DATE

03 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 155.4 KB

Instruction Manual for 752DALIRC PIR sensor, Master, 360deg, DALI output, Secondary for 752DALIRC

Instruction Manual for 752DALIRC PIR sensor, Master, 360deg, DALI output, Secondary for 752DALIRC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 4.5 MB

USER MANUAL - Remote Control for 752DALIRC sensor

USER MANUAL - Remote Control for 752DALIRC sensor

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 488.6 KB
