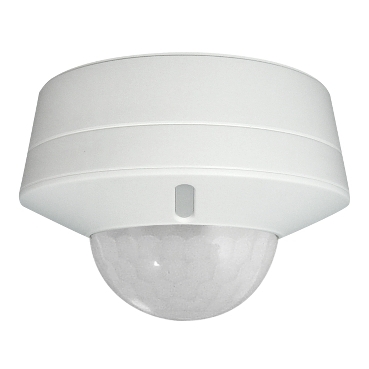

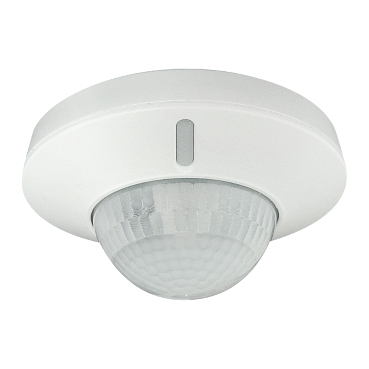

ARGUS Movement detectors PIR Sensor 360deg, 15m, Dual Channel, Remote Control Option

Home ProductsSecurity and Safety752 Series Motion SensorsPIR Sensor

ARGUS Movement detectors PIR Sensor 360deg, 15m, Dual Channel, Remote Control Option

Item Number: 752IR2RC

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

ARGUS standard movement detector

Range

ARGUS

Product or component type

presence detector with IR receiver

Colour tint

white

Physical

Load type

  • LED lighting: : 100 W
  • incandescent lamps: : 2000 W - 230 V
  • halogen lamp: : 1000 W - 230 V
  • fluorescent tube: 900 VA
  • compact fluorescent lamp: : 100 W
  • motor: : 100 W
  • relay: : 5 A - 250 V

Output current

10 A

Number of channels

2

Control type

movement sensor

Function available

switching, toggling, dimming

Light intensity adjustment

10...2000 lux

Device mounting

  • surface
  • flush

Mounting height

2.5...2.5 m

Ip degree of protection

  • IP52
  • IP40

Reach free of svhc

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1201002EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty duration(in months) bmecat

18

At least in Europe

Network frequency

50/60 Hz

Input function

  • switch
  • external trigger

Output voltage

220...250 V

Horizontal detection angle

360 °

Detection face

radius: 14000 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

13.6 cm

Package 1 width

12.1 cm

Package 1 length

17.8 cm

Package 1 weight

433.1 g

Sustainable packaging

No

China rohs label

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • Other technical guide

  • Environmental Disclosure

  • Operating Manuals

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Clipsal Standalone and System Sensor Selection Guide-Technical leaflet
ZIP

Clipsal Standalone and System Sensor Selection Guide-Technical leaflet

VERSION

2.0

DATE

21 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 203.9 KB

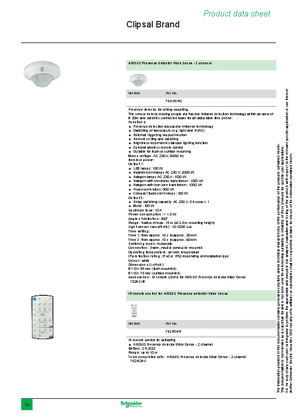

Technical leaflet for 752RC/IR ARGUS Presence detector Wide Sense - 2 channel/IR remote control
ZIP

Technical leaflet for 752RC/IR ARGUS Presence detector Wide Sense - 2 channel/IR remote control

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 241.5 KB

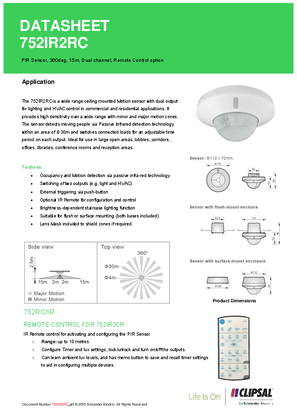

Technical Data Sheet for 752IR2RC 2 Channel PIR Sensor
ZIP

Technical Data Sheet for 752IR2RC 2 Channel PIR Sensor

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 507.1 KB
ARGUS - PIR 220 advanced, polar white - Product Environmental Profile
ZIP

ARGUS - PIR 220 advanced, polar white - Product Environmental Profile

VERSION

1.0

DATE

03 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 155.4 KB

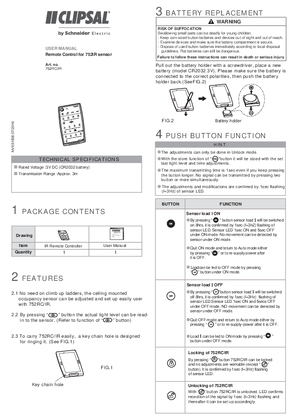

Users Guide for 752RC/IR Remote Control for 752IR Sensor
ZIP

Users Guide for 752RC/IR Remote Control for 752IR Sensor

VERSION

1.0

DATE

27 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 613.3 KB

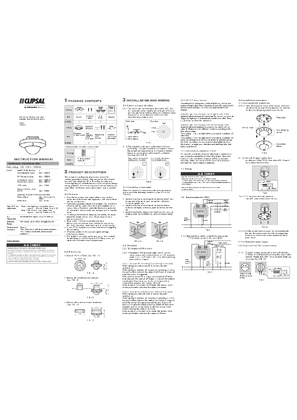

Instruction Manual for 752IR2RC PIR Sensor, 360deg, 15m, dual channel, Remote control option
