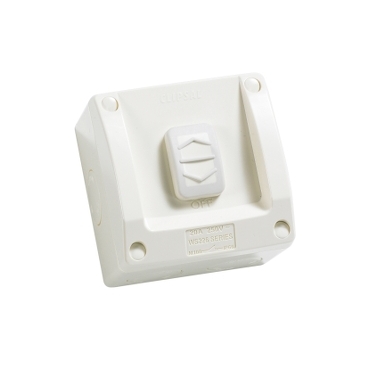

Weathershield Switch 1-Gang, 20A/16AX, 250VAC, IP66

Home ProductsPower Points and SwitchesWeathershieldSwitch

Weathershield Switch 1-Gang, 20A/16AX, 250VAC, IP66 | Chemical Resistant Grey

Item Number: WS226/20-RG

Give yourself the option of two-way switching with the Clipsal Weathershield 1-Gang switch, rated 20A/ 16AX, 250VAC. The switch has an IP66 rating to prevent dust and water ingress. The gloss finish is robust and designed for our summers and winters.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

  • Series WS
  • Weathershield

Product brand

Clipsal

Surface finish

brilliant

Physical

Control type

sliding type

Fixing mode

by screws

Device mounting

surface

Standards

  • AS/NZS 3133
  • AS 60529
  • IEC 60669-1

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2106012EN

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Warranty duration(in months) bmecat

18

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.4 cm

Package 1 width

8.7 cm

Package 1 length

8.7 cm

Package 1 weight

184.0 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

7 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.562073295093471

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0240011339939113

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

5.389618013703003

Carbon footprint of the use phase [b2, b3, b4, b6]

5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.3998702886812909

Carbon footprint of the end-of-life phase [c1 to c4]

0.4 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

7.375562731471677

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

End of life manual availability

ENVEOLI2106012

Take-back

No

Warranty (in months)

18
Show all specifications
