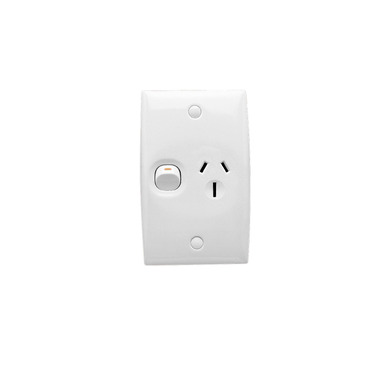

Standard Series, Single Switch Socket Outlet, 250V, 15A, Standard Size, Vertical

Home ProductsPower Points and SwitchesStandard SeriesSingle Switch Socket Outlet, 250V, 15A, Standard Size, Vertical

Standard Series, Single Switch Socket Outlet, 250V, 15A, Standard Size, Vertical WE

Item Number: 15V15-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

switch|rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

vertical

[ue] rated operational voltage

250 V AC

[in] rated current

15 A

Depth

14 mm

Length

115 mm

Width

73 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133|AS/NZS 3000:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.4 cm

Package 1 width

7.3 cm

Package 1 length

11.5 cm

Package 1 weight

0.133 kg
Show all specifications
