Home ProductsPower Points and SwitchesStandard SeriesSingle Switch Socket Outlet

Standard Series Single Switch Socket Outlet 250V, 10A, Standard Size, Vertical | Cream

Item Number: 15V-CM

White Electric 1 PCE 0
Cream 1 PCE 0
Red 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554035174	WE
5	CRT	9311554200138	WE
100	CAR	19311554101937	WE
1	PCE	9311554035112	CM
5	CRT	9311554214098	CM
100	CAR	29311554101903	CM
1	PCE	9311554035150	RD
5	CRT	9311554214135	RD
50	CAR	19311554192263	RD

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

Number of power socket outlets

Actuator

rocker
switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

vertical

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

14 mm

Length

115 mm

Width

73 mm

Fixing center

84 mm

Standards

AS/NZS 3100
AS/NZS 3112
AS/NZS 3133
AS/NZS 3000:approval number S/1

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Weee label

N/A

Outside of Europe

Package 1 bare product quantity

Legacy weee scope

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3 cm

Package 1 width

7.2 cm

Package 1 length

11.5 cm

Package 1 weight

70.4 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

11.7 cm

Package 2 width

10.2 cm

Package 2 length

13.8 cm

Package 2 weight

450 g

Unit type of package 3

CAR

Number of units in package 3

100

Package 3 height

25.4 cm

Package 3 width

34.8 cm

Package 3 length

44.5 cm

Package 3 weight

9 kg

Sustainable packaging

End of life manual availability

N/A

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
Technical Data Catalogues
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Standard Series Technical Catalogue

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 5.3 MB

ZIP

15V-WE EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

15V-WE EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Frequently Asked Questions

What is a 3 phase 20 amp RCBO made up of?

Hide Show

The part number for a 3 phase, 20Amp RCBO is a 4RCBE420/30.

Specifications

Supply Voltage	415 V AC
Rating	20A
Fault Current	6000A
Sensitivity	30mA
Poles	3P+N
Type	Type A
Pole Width	5 Modules (18mm × 5)
Curve Type	C - Curve
Top or Bottom Fed	Both
IP Rating	IP20
Mount	Din-Rail (Double Locking Clip)
Indicator	Positive Contact and Red Flag
Certification	Approval to AS/ NZS 61009.1:2015

For further information please visit https://www.clipsal.com/products/detail?catno=4RCBE420/30&tab-document-1=0

Max4 RCBO 3PN C 20A 6000A 30mA A type 415V RCBO

Max4 RCBO 3PN C 20A 6000A 30mA A type 415V RCBO

What is the difference between the iC60N and the iC60H Circuit Breakers?

Hide Show

The differences between the iC60N and iC60H series of circuit breakers is the iC60N has a breaking capacity of 6kA at 240/415V, C Curve in accordance with AS/NZS60898.1, where as the iC60H has a breaking capacity of 10kA at 240/415V B, C & D Curve in accordance with AS/NZS60898.1.

In Australia the iC60N is only available in C Curve where as the iC60H is available in B, C & D Curve.

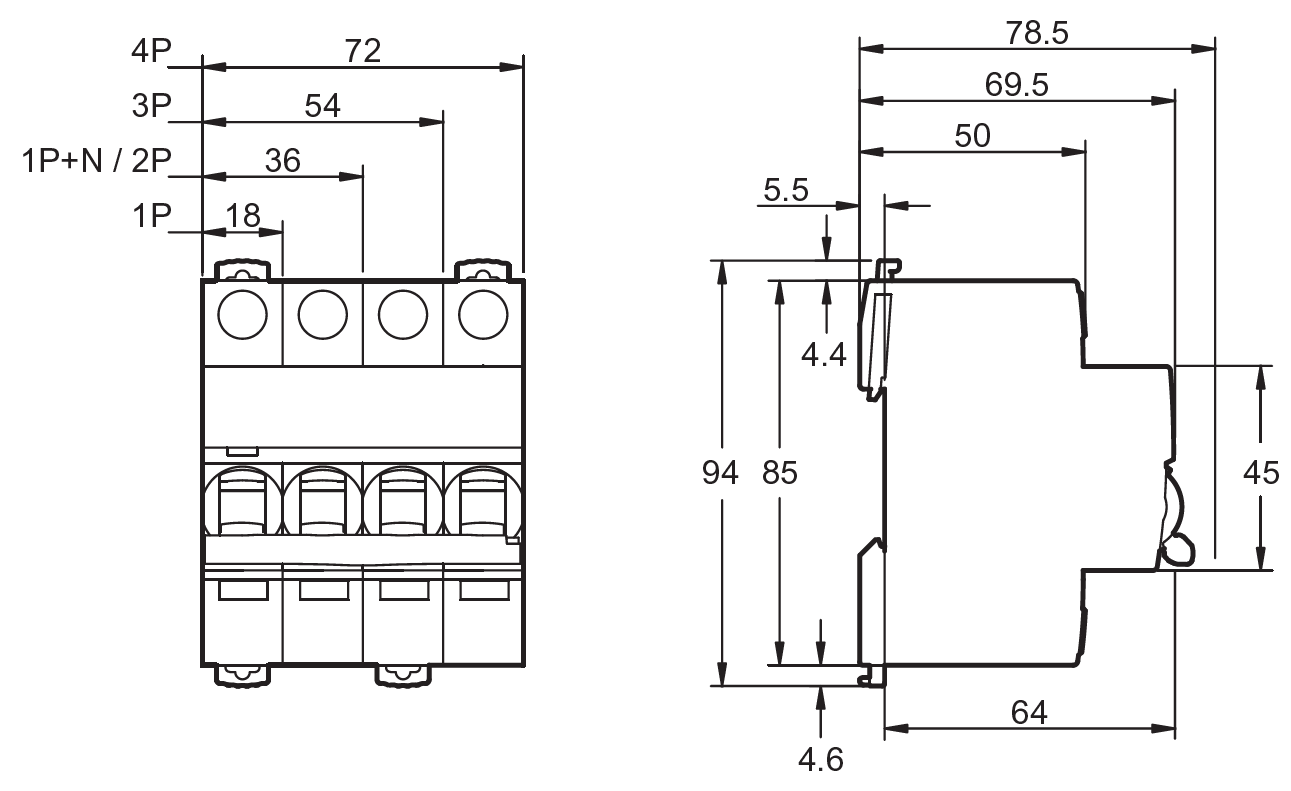

iC60N & iC60H Dimensions

Connection: Tunnel terminals for the following cables

- up to 25A : 25mm2 stranded

- 32 to 63A : 35mm2 stranded

For further information please visit https://www.schneider-electric.com.au/en/product-subcategory/1605-acti-9-miniature-circuit-breakers---mcbs/
