Home ProductsPower Points and SwitchesStandard SeriesFlexible Cord Extension Socket

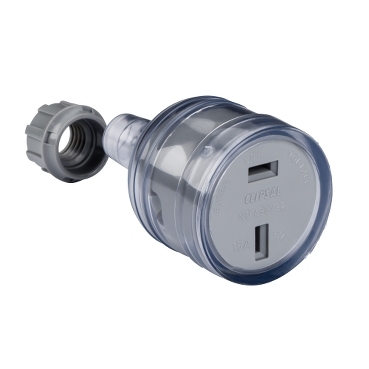

Standard Series Flexible Cord Extension Socket 32VAC, 10A, 2 PIN ParAllel | Transparent

Item Number: 438/32-TR

Transparent 1 PCE 0
Grey 1 PCE 0
White Electric 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554186449	WE
10	CRT	9311554124083	WE
100	CAR	29311554124087	WE
1	PCE	9311554186425	GY
10	CRT	9311554124076	GY
250	CAR	19311554124073	GY
1	PCE	9311554186432	TR
10	CRT	9311554140434	TR
100	CAR	29311554140438	TR

Specifications

Design

Range of product	Standard Series
Product or component type	socket-outlet
Product brand	Clipsal

Physical

Quantity per set	set of 1
Marking	without marking
Local signalling	without light indicator
[in] rated current	15 A
[ue] rated operational voltage	32 V DC
Depth	71 mm
Standards	AS/NZS 3112 AS 3100 AS 3109 AS/NZS 3122:approval number S/1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2508038EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PVC (polyvinyl chloride)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Cover type	complete housing
Diameter	43 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4 cm
Package 1 width	10 cm
Package 1 length	20 cm
Package 1 weight	50 g
Total lifecycle carbon footprint	0.4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.2588626331031738
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007185785614334526
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.015759443182083905
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0539501499143412
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.03431299114183405
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.3700710029557675
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
