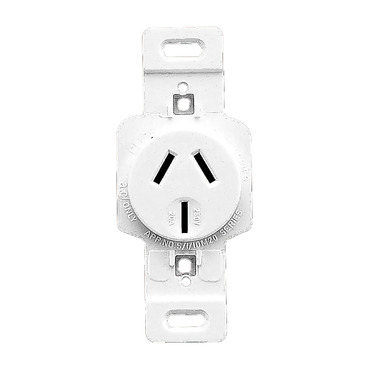

Standard Series Automatic Single Switch Socket Outlet 250VAC, 20A, 2 Pole | White Electric
Item Number: 10MD20-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
20 A
[ue] rated operational voltage
250 V AC
Depth
33 mm
Length
60 mm
Width
42 mm
Fixing center
50 mm
Number of poles
2
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cover type
complete housing
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.3 cm
Package 1 width
4.2 cm
Package 1 length
6 cm
Package 1 weight
0.07 kg
