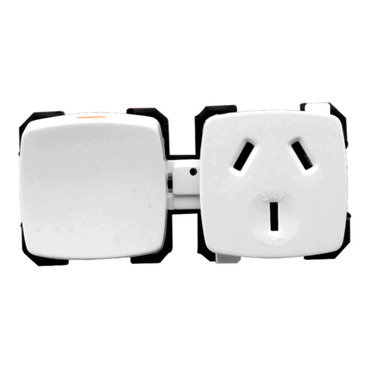

Prestige Series Switched Socket Mechanism 250V 10A | White Electric
Item Number: P15M-WE
Datasheet
Close
Specifications
Design
| Range of product | Prestige Series P2000 |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 29 mm |
| Length | 80 mm |
| Width | 38 mm |
| Standards |
|
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
