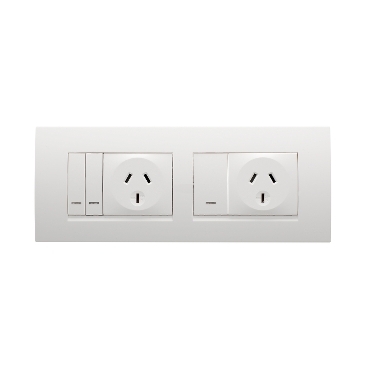

Modena/Strato Twin Switch Socket Outlet 250V, 10A, Horizontal Grid, Extra Switch | White Electric
Item Number: M8015XLH2-WE
Datasheet
Close
Specifications
Design
| Range of product | PDL 800 Modena Series |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Local signalling | indicator light |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 9 mm |
| Length | 124 mm |
| Width | 85 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
