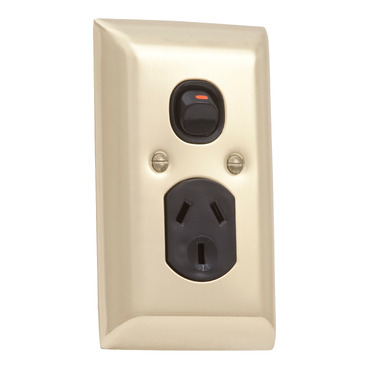

Metal Plate Series, Single Switch Socket Outlet, 250V, 10A, A Style, Deep Curve Plate, Vertical

Metal Plate Series, Single Switch Socket Outlet, 250V, 10A, A Style, Deep Curve Plate, Vertical BK

Item Number: BA15VA-BK

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Metal Plate

Product or component type

switched socket

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

switch|rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

vertical

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

35 mm

Length

115 mm

Width

70 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111024EN

Circularity profile

ENVEOLI110713EN

Material

Material

brass

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

7 cm

Package 1 length

11.5 cm

Package 1 weight

160 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

11.7 cm

Package 2 width

10.2 cm

Package 2 length

13.8 cm

Package 2 weight

800 g

Unit type of package 3

CAR

Number of units in package 3

25

Package 3 height

11.7 cm

Package 3 width

25 cm

Package 3 length

31 cm

Package 3 weight

4000 g
Show all specifications
