Clipsal Iconic USB Mechanism Cap Single USB Charger 5 Pack

Home ProductsPower Points and SwitchesClipsal IconicUSB Mechanism Cap Single USB Charger

Clipsal Iconic USB Mechanism Cap Single USB Charger 5 Pack | Cool Grey

Item Number: 40E1USBCAP-CY

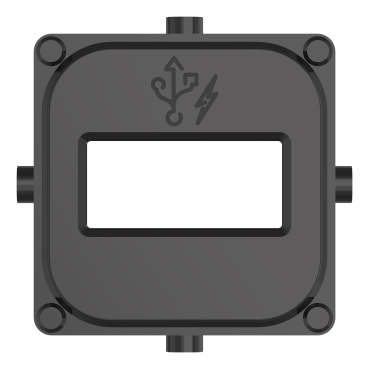

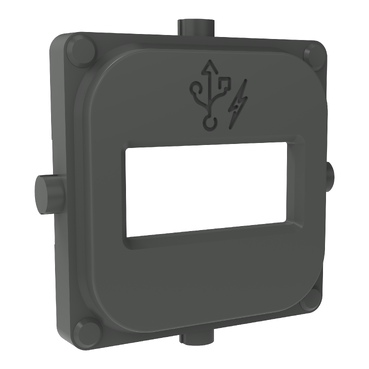

The Clipsal Iconic USB Mechanism Cap is for use with USB outlet mechanisms, for USB A style charging cables. Featuring a USB symbol for easy identification, the caps simply clip flush into the Clipsal USB charging mechanism outlet.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width22 mm

Height icon

Height22 mm

Depth icon

Depth4 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Iconic

Product or component type

socket cap

Colour tint

vivid white (VW)

Product destination

USB charger

Surface treatment

untreated

Physical

Quantity per set

set of 5

Number of gangs

1 gang

Device mounting

flush

Switch function

2 positions

Connector type

USB type A

Marking

USB symbol

Height

22 mm

Width

22 mm

Depth

4 mm

Fixing mode

clip-on

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

ABS (acrylonitrile butadiene-styrene)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.1 cm

Package 1 width

3.2 cm

Package 1 length

5.8 cm

Package 1 weight

4 g

Sustainable packaging

No

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

Take-back

No

Warranty (in months)

18
Show all specifications
