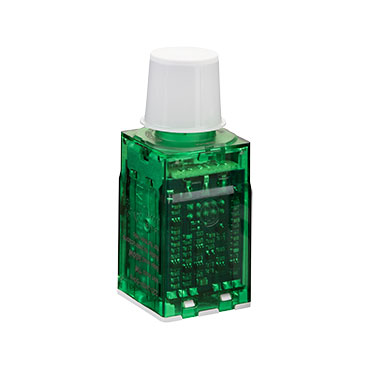

Clipsal Iconic LED Dimmer Mechanism Rotary, 350W | Vivid White
Item Number: 42E350RLD2M-VW
The Clipsal Iconic LED Dimmer Mechanism adds a new level of style and convenience to your lighting while saving on energy. This rotary led dimmer switch has an adjustable 315° brightness setting to adjust the lighting to set the mood in any room.
Specifications
Design
| Range | Clipsal Iconic |
|---|---|
| Product or component type | dimmer |
Physical
| Device presentation | mechanism |
|---|---|
| Dimmer type | universal |
| Type of packing | box |
| Load type |
|
| Control type | rotary knob |
| Fixing mode | clip-in |
| Ambient air temperature for storage | 0...60 °C |
| Dimmer control | 315° rotary setting |
| [ie] rated operational current | 1.5 A |
| [ue] rated operational voltage | 220...240 V AC 50 Hz 1 W |
| Function available | brightness adjustment |
| Protection type | short-circuit |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 0...90 % |
| Connections - terminals | flying leads |
| Local signalling | LED |
| Height | 22.5 mm |
| Width | 22.5 mm |
| Depth | 39 mm |
| Embedding depth | 37 mm |
| Derating factor |
|
| Standards | AS/NZS 60669.2.1 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
Documents & downloads
-
All
-
Product Brochures
-
Other technical guide
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Case Studies
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
Clipsal LED Lighting & Control Catalogue Volume 6
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
Clipsal ICONIC Collection Brochure 998-20216468_AU-GB
VERSION
1.1
DATE
02 Aug 2022
REVISION
1.1
PRO SERIES - RANGE OVERVIEW BROCHURE
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
42E350RLD2M-VW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
42E350RLD2M-VW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
42E350RLD2M-VW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
42E350RLD2M-VW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
42E350RLD2M-VW REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
42E350RLD2M-VW REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
What has been changed with the new Rotary LED dimmers for Iconic range (40 series) and standard range (30 series)?
Hide ShowBoth dimmers have now been improved and introduce the following new features
- New Digital electronic 2-wire trailing edge design for optimum LED dimming performance
- Kick start for faster LED turn on at low settings
- Mechanically adjustable minimum brightness setting
- In-built short circuit, over current and over temperature protection
- Full range smooth LED dimming from 1 – 100% (load dependant)
- Cleaner look with no markings on the control knobs
Please note that the load ratings have changed for the new version. The new 32ELEDM2-WE and 42ELEDM2-VW are rated to 150W to enable enhanced LED optimised control and dimming performance.
